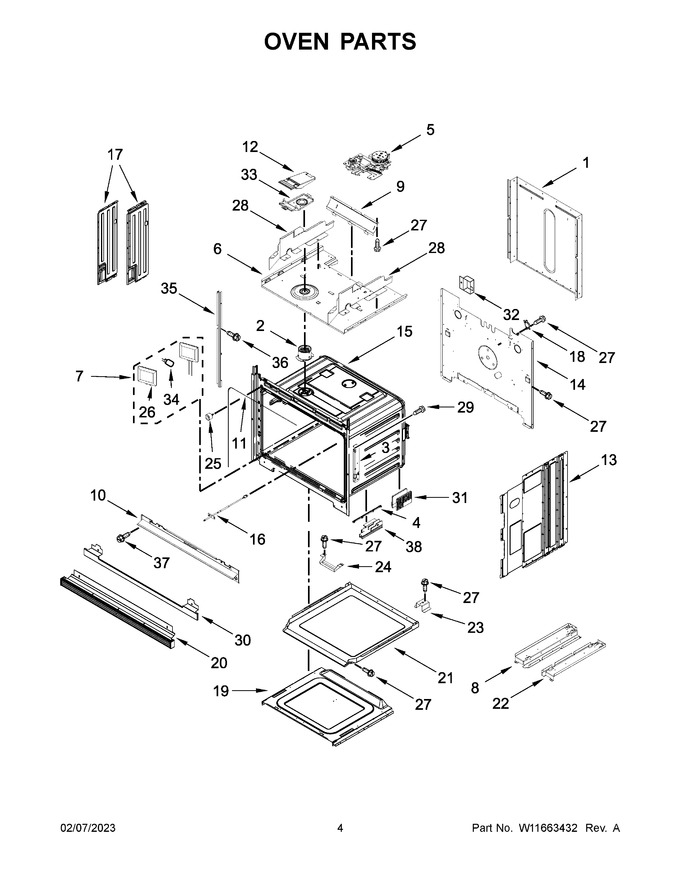

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Top Venting Parts


07 - Cabinet And Stirrer Parts


08 - Microwave Door Parts


09 - Internal Microwave Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598116		Spacer, Base   (Replaces: W11156710)				$ 18.53
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 69.86
6	W11244456		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 107.48
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W11783650		Vent, 27 In Combo Center   (Replaces: W11518348)		Appelez-nous	-
11	W11608109		Gasket, Cavity				$ 70.97
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
15	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598139		Base, Chassis   (Replaces: W11244454)		Appelez-nous	-
20	W11598191		Assembly, Bottom Vent (white)   (Replaces: W11369894)		Appelez-nous	-
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	7101P42660		Screw		Appelez-nous	-
28	W11186391		Deflector, Chassis (left)		Appelez-nous	-
29	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
30	W11712432		Trim, Bottom Vent (black)   (Replaces: W11356754)				$ 89.95
31	W11598170		Foot, Base   (Replaces: W11245118)				$ 29.04
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
35	W11235457		Trim, Side (black (left))				$ 79.72
36	W11602623		Screw   (Replaces: W11404000)				$ 14.23
37	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
38	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 29.70
17A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
20A	W11598189		Assembly, Bottom Vent (stainless)   (Replaces: W11369886)				$ 251.57
20B	W11369893		Accessory Parts, Assembly, Bottom Vent (black)		Appelez-nous	-
28A	W11186398		Deflector, Chassis (right)		Appelez-nous	-
35A	W11235458		Trim, Side (black (right))				$ 79.72
38A	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 29.52
3A	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
NI	W11688568		Insulation, Wrap   (Replaces: W11244474)		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11244475		Insulation, Back		Appelez-nous	-
