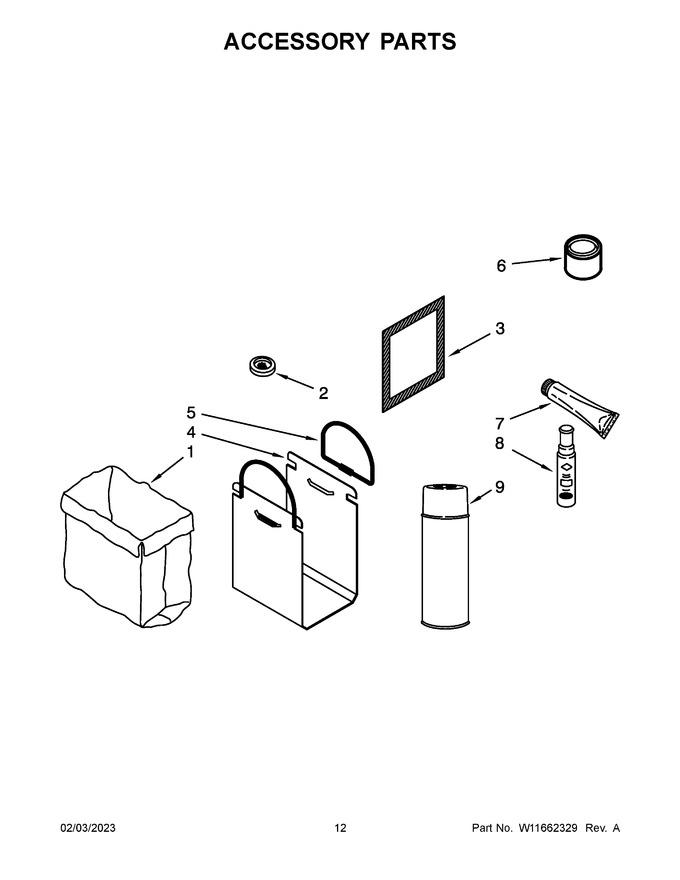

07 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165295RP | Bag, Trash (15" Plastic, 15 Pack) (Replaces: 4318921) |
|
Immediately | $ 32.07 | ||||
| 2 | 777635 | Deodorizer, Solid Stick-ups (2 Pack) |
|
- | |||||
| 3 | W10540355 | Deodorizer Block (green Apple) (Replaces: 9872166GA) |
|
$ 15.89 | |||||
| 4 | 13030RP | Carrier. Bag (Replaces: 13030) |
|
Immediately | $ 58.33 | ||||
| 5 | WP777108 | Handle, Bag Carrier (Replaces: 777108) |
|
$ 36.99 | |||||
| 6 | 675351 | Grease 4 Oz. (use On Power Screw & Ram Pressure Pads) |
|
- | |||||
| 7 | WP279368 | Adhesive (2 Oz. Tube) (Replaces: 279368) |
|
Immediately | $ 116.46 | ||||
| 8 | 72032 | Paint, Touch-up (1/2oz. Black) |
|
Immediately | $ 18.69 | ||||
| 9 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | |||||
| 1A | 4318922 | Bag, Trash (15" Plastic, 60 Pack) |
|
- | |||||
| 1B | W10165295BU | Bag, Trash (15" Plastic, 180 Pack) (Replaces: 94318921) |
|
Immediately | $ 228.91 | ||||
| 1C | 675186 | Bag, Trash (15" Plastic, 12 Pack) |
|
$ 22.83 | |||||
| 1D | 882652 | Bag, Trash (15" Plastic, 48 Pack) |
|
$ 82.10 | |||||
| 3A | 9872166LG | Deodorizer Block (lemongrove) |
|
- | |||||
| 3B | 9872166L | Deodorizer Block (lavender) |
|
- | |||||
| 8A | 72017 | Paint, Touch-up (1/2oz. White) |
|
Immediately | $ 12.30 | ||||
| 9A | 350930 | Paint, Pressurized Spray (12 Oz. White) |
|
Immediately | $ 40.12 |
