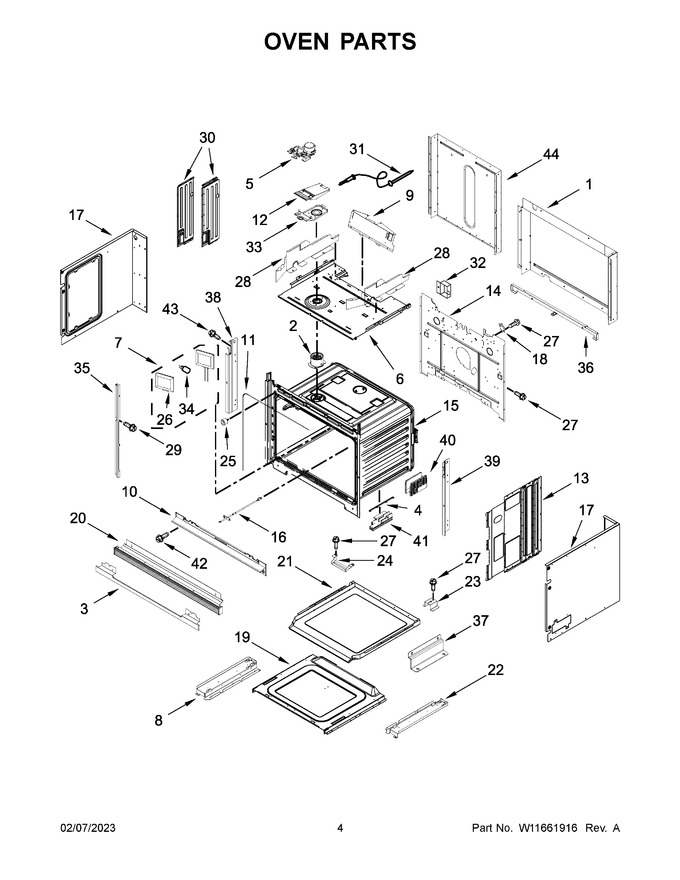

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Internal Microwave Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11171004		Cover, Combo Chassis Back Duct				$ 74.55
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11598135		Trim, Bottom Vent (black)   (Replaces: W11356753)			Immediately	$ 76.24
4	W11598116		Spacer, Base   (Replaces: W11156710)				$ 18.53
5	W11811612		Latch, Motorized   (Replaces: W11132456)			Immediately	$ 69.86
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Assembly, Oven Light   (Replaces: W11205574)			Immediately	$ 107.48
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W11743956		Vent, Combo Center   (Replaces: W11518347)				$ 171.29
11	W11676903		Gasket   (Replaces: W11262567)			Immediately	$ 72.57
12	W11256424		Cover, Vent Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	W11223327		Back, Chassis		Appelez-nous	-
15	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	W11171909		Side, Combo Chassis (left)				$ 72.95
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 75.86
20	W11369885		Assembly, Bottom Vent (white)			Immediately	$ 254.92
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Chassis Bottom Duct   (Replaces: W11390667)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	7101P42660		Screw		Appelez-nous	-
28	W11186391		Deflector, Chassis (left)		Appelez-nous	-
29	W11602623		Screw   (Replaces: W11404000)				$ 14.23
30	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11256423		Base, Vent Exhaust		Appelez-nous	-
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
35	W11235457		Trim, Side (black (left))				$ 79.72
36	W10283022		Support, Crossbar				$ 81.32
37	W10283024		Side, Bracket				$ 78.86
38	W11627410		Rail, Side (left)   (Replaces: W11235470)				$ 61.70
39	W11627411		Rail, Side (right)   (Replaces: W11235471)				$ 59.61
40	W11598170		Foot, Base   (Replaces: W11245118)				$ 29.04
41	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 29.70
42	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
43	7101P65360		Screw		Appelez-nous	-
44	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
17A	W11244451		Side, Combo Chassis (right)		Appelez-nous	-
20A	W11598202		Assembly, Bottom Vent (stainless)   (Replaces: W11369882)			Immediately	$ 202.16
20B	W11369884		Assembly, Bottom Vent (black)			Immediately	$ 114.33
28A	W11186398		Deflector, Chassis (right)		Appelez-nous	-
30A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
35A	W11235458		Trim, Side (black (right))				$ 79.72
41A	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 29.52
NI	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
NI	W11602627		Insulation, Cavity   (Replaces: W11234758)				$ 82.51
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
