SELECT A DIAGRAM

01 - Cover Sheet

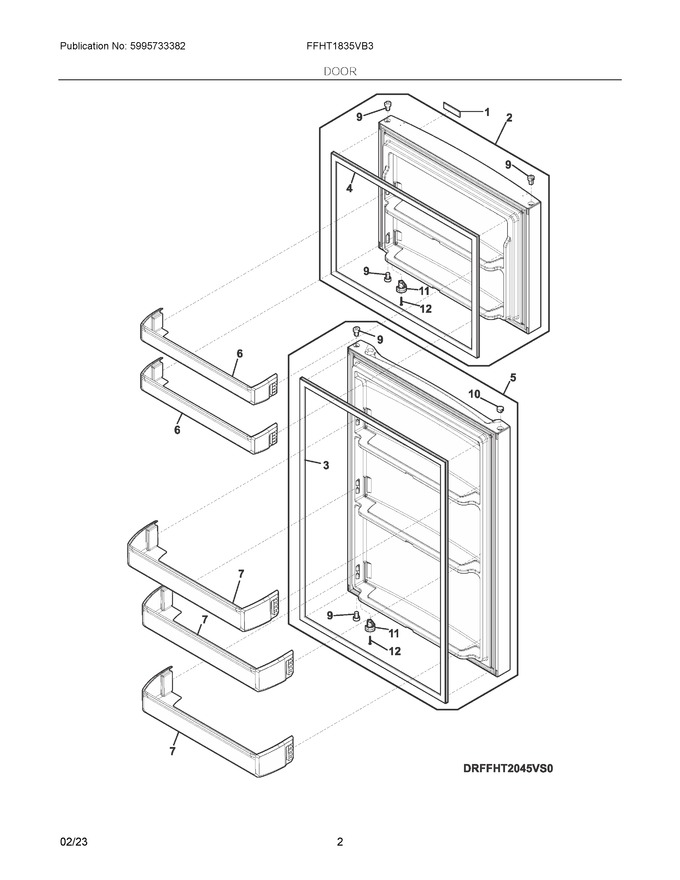

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511145		Badge, Frigidaire, Black				$ 5.06
2	5304529518		Door Assembly, Frzr Door		Appelez-nous	-
3	5304528905		Gasket, Door, Black, Fresh Food				$ 227.91
4	5304528906		Gasket, Door, Black, Freezer			Immediately	$ 207.72
5	5304529512		Door Assembly, Black, Ff Door		Appelez-nous	-
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 56.26
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 78.61
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 24.91
9	5304522193		Bearing, Hinge, Black				$ 8.43
10	5304522186		Cover, Hinge Bearing, Black		Appelez-nous	-
11	5304522237		Hook, Door Closer, Black				$ 5.06
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 12.64

    View Diagram in Separate Window       Print Part List
