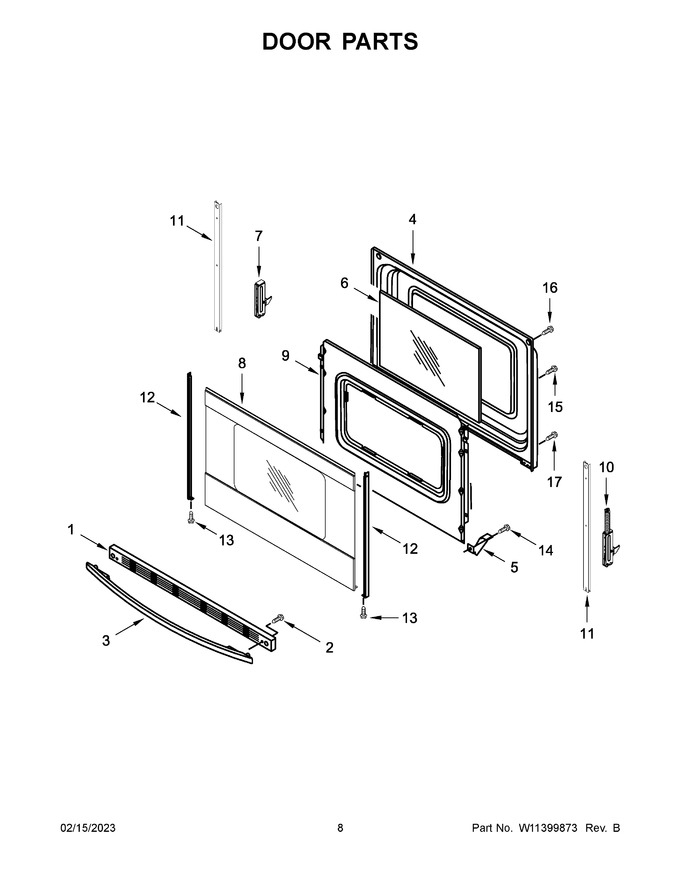

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
3	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 171.68
7	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
8	W10904908		Glass Assembly, Outer Door (stainless)   (Replaces: W10817930)				$ 407.88
9	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 188.29
10	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
11	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
12	W10761018		Trim, Side (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
14	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
12A	W10761014		Trim, Side (black (right))   (Replaces: W10746435)			Immediately	$ 72.96

    View Diagram in Separate Window       Print Part List
