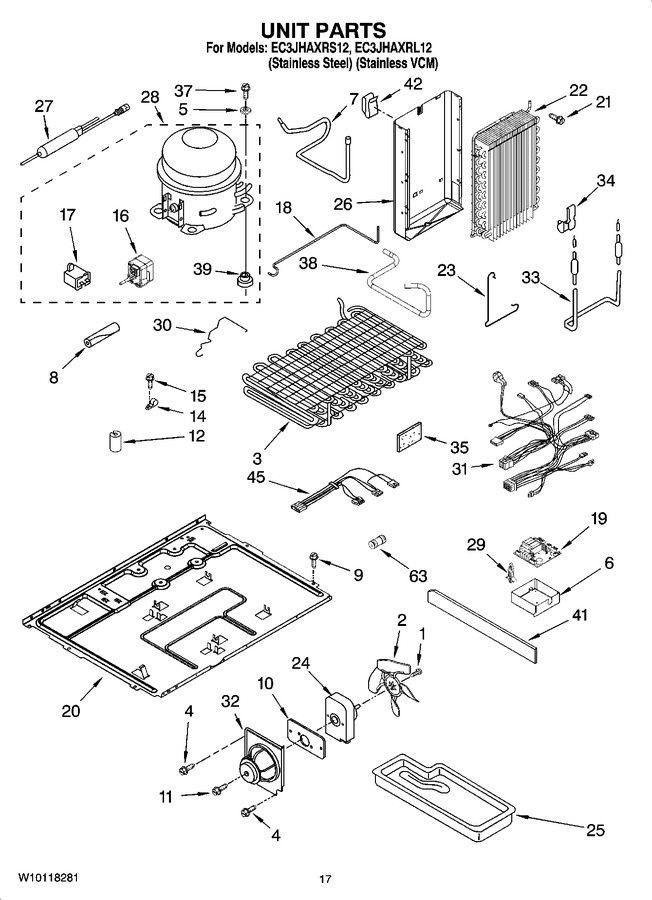

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488234 | Screw (Replaces: 777070) |
|
$ 7.08 | |||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W10193018 | Condenser Assembly (Replaces: 2223315) |
|
$ 347.20 | |||||
| 4 | 8281197 | Screw |
|
- | |||||
| 5 | W10000040 | Washer (4) |
|
- | |||||
| 6 | 2223703 | Housing, Control Board |
|
$ 75.75 | |||||
| 7 | W10528579 | Tube Suction (Replaces: 2223351) |
|
$ 275.31 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | 3400524 | Screw (6) |
|
$ 13.28 | |||||
| 10 | 2301979 | Plate, Mounting |
|
$ 94.77 | |||||
| 11 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 12 | W10852725 | Grommet, Cond (4) (Replaces: 2319835) |
|
$ 8.09 | |||||
| 14 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 15 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 16 | WPW10189190 | Start Device-combo Relay & Overload (Replaces: 2319793) |
|
Immediately | $ 131.29 | ||||
| 17 | WPW10662129 | Capacitor (Replaces: 2169373) |
|
Immediately | $ 58.86 | ||||
| 18 | 2223353 | Tube, Condenser To Heat Loop |
|
$ 52.06 | |||||
| 19 | 2323180 | Electronic Control |
|
$ 222.38 | |||||
| 20 | 2306932 | Baseplate |
|
$ 158.02 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 22 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 23 | 2161324 | Clamp |
|
- | |||||
| 24 | W10124096 | Fan, Motor (Replaces: 2188729) |
|
Immediately | $ 112.20 | ||||
| 25 | 2223398 | Tray, Evaporator |
|
- | |||||
| 26 | 2224022 | Heat Shield |
|
- | |||||
| 27 | WPW10143759 | Drier (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 28 | W10139462 | Compressor (includes Item 39) (Replaces: 2318414) |
|
$ 668.33 | |||||
| 29 | 2223800 | Spacer (5) |
|
$ 17.50 | |||||
| 30 | 2255199 | Retaining Clip |
|
- | |||||
| 31 | 2187850 | Harness, Main Control |
|
$ 101.49 | |||||
| 32 | 2224024 | Fan, Motor Bracket |
|
$ 56.36 | |||||
| 33 | WP2210737 | Heater, Defrost (Replaces: 2210737) |
|
Immediately | $ 170.54 | ||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 35 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 37 | W10000070 | Screw |
|
- | |||||
| 38 | 2223352 | Tube, Discharge |
|
- | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 39 | W11661108 | Grommet (4) (production) (Replaces: 2183042) |
|
$ 15.21 | |||||
| 41 | 2223394 | Extension, Air Baffle |
|
- | |||||
| 42 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 45 | 2187737 | Unit Harness |
|
$ 164.84 | |||||
| 63 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 63 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 63 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 63 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 63 | WP4373559 | Connector, Water Tube (Replaces: 2209709) |
|
$ 81.22 | |||||
| 63 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 63 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 63 | 978028 | Valve, Access (1/2) |
|
- |
