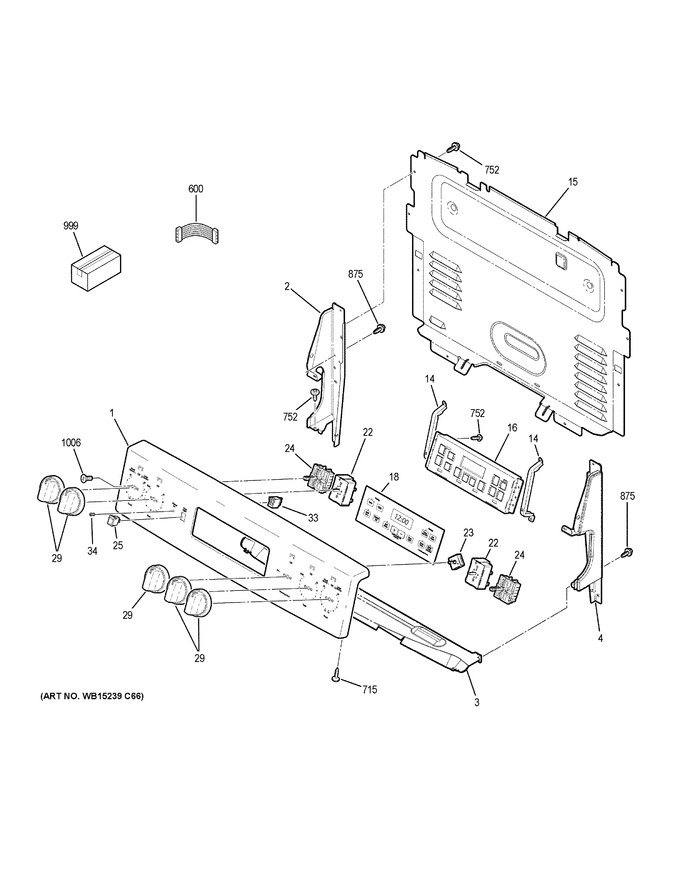

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB07X31471		Control Panel Trim And Brackets Asm Ds		Appelez-nous	-
1	229C6522P002		Label Wire Diagram		Appelez-nous	-
2	WB07X29534		End Plate Lh Dg		Appelez-nous	-
3	WB34X28565		Backguard Shield Heat		Appelez-nous	-
4	WB07X29535		End Plate Rh Dg		Appelez-nous	-
14	WB34X31189		Control Panel Bracket		Appelez-nous	-
15	WB34X29564		Control Panel Back Cover		Appelez-nous	-
16	WB27X41726		Control Oven To9		Appelez-nous	-
18	WB07X41729		Faceplate Graphics (gy)		Appelez-nous	-
22	WB24T10022		Inf Switch Control 1250w				$ 48.75
23	WB24X40051		Switch Rotary		Appelez-nous	-
24	WB24X25013		Switch Infinite Control		Appelez-nous	-
25	WB24X21444		Switch Rocker Oven		Appelez-nous	-
29	WB03X29165		Knob Asm Ts		Appelez-nous	-
33	WB25X20005		Light Indicator Pilot		Appelez-nous	-
34	WB25X24023		Lens		Appelez-nous	-
600	WB18X42868		Maintop Harness		Appelez-nous	-
715	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	49-2001000		Pm Owners Manual		Appelez-nous	-
999	31-17231		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	31-11105		Pm Instructions Install		Appelez-nous	-
999	31-10781		Pm Install Instructions		Appelez-nous	-
999	31-10617		Instruction Install		Appelez-nous	-
1006	WB01X23501		Scr 8-32 Tt Flp .270		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
