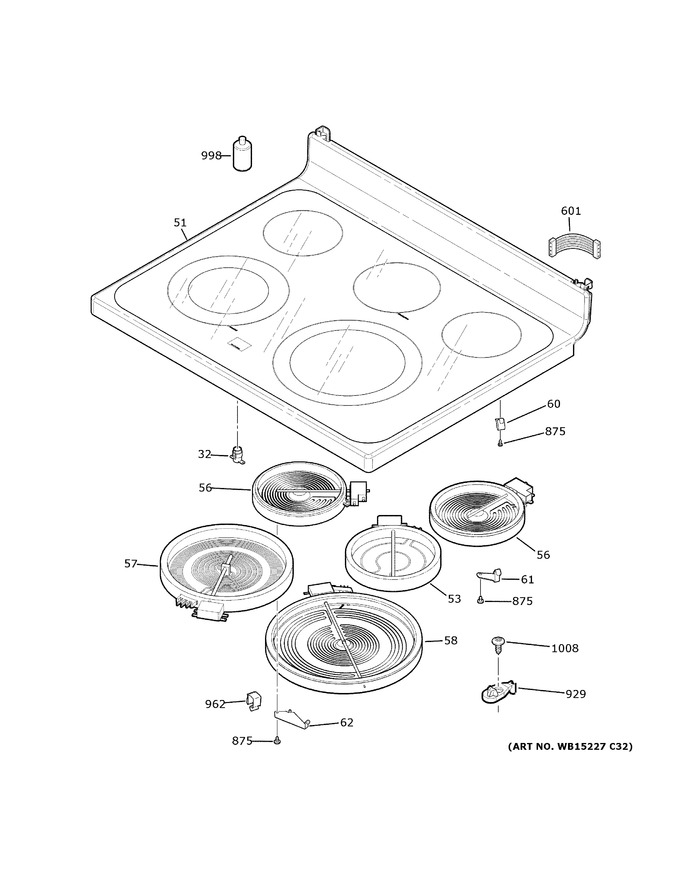

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WG02F04788 | Hot Cooktop Light Indicator (Replaces: WB27T10668) |
|
Immediately | $ 14.29 | ||||
| 51 | WB62X25977 | Rangetop Glass Asm (wh) |
|
- | |||||
| 53 | WB30X42872 | Warming Element 80w |
|
- | |||||
| 56 | WG02F02056 | Element Radiant 5.5 In (Replaces: WB30T10145) |
|
Immediately | $ 133.34 | ||||
| 57 | WB30X24111 | Element Radiant 9" Dual |
|
- | |||||
| 58 | WS01F01164 | Element Haliant 12 In (Replaces: WB30T10130) |
|
Immediately | $ 108.08 | ||||
| 60 | WB09X40389 | Spring Radiant Element |
|
- | |||||
| 61 | WB02X20902 | Bracket Radiant Element |
|
- | |||||
| 62 | WB02X20940 | Bracket Radiant Element |
|
- | |||||
| 601 | WB18X30705 | Lead Wire 14 Ga Gn |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02X25982 | Clip Cable |
|
- | |||||
| 998 | WB64X93 | Glass Cleaner |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
