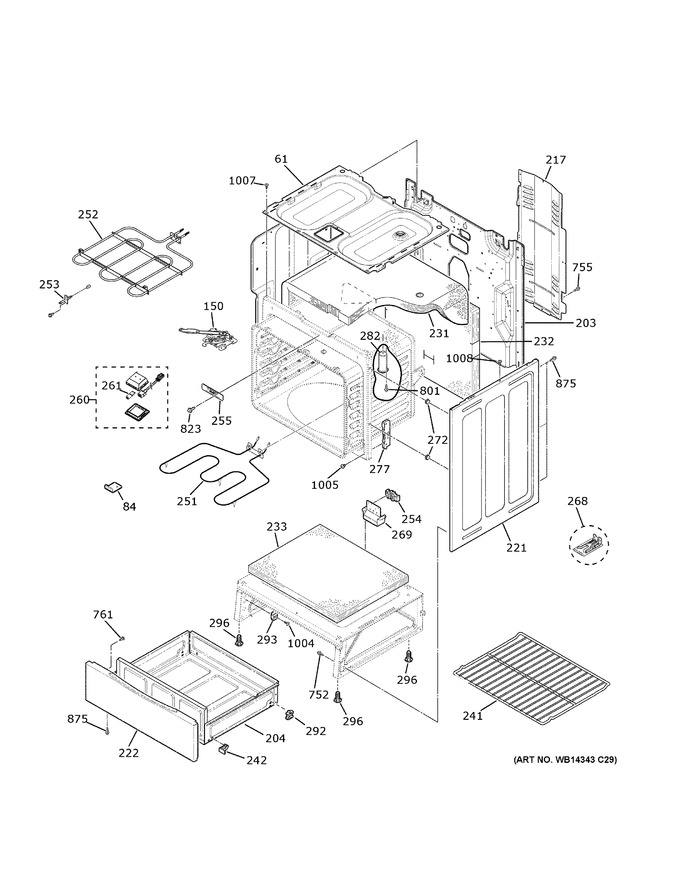

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Control Panel
Cooktop
Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 61 | WB63X29561 | Burner Box Gy |
|
- | |||||
| 84 | WB02T10118 | Clip Seam Oven Body |
|
- | |||||
| 150 | WB14X41386 | Black Latch And Handle |
|
- | |||||
| 203 | WB34X32059 | Main Back Cover |
|
- | |||||
| 204 | WB63X29070 | Drawer Body Asm |
|
- | |||||
| 217 | WB34X29563 | Wire Cover Back |
|
- | |||||
| 221 | WB56X28881 | Side Panel Bk |
|
- | |||||
| 222 | WB56X43436 | Drawer Panel-black |
|
- | |||||
| 231 | WB35X29569 | Oven Cavity Insulation |
|
- | |||||
| 232 | WB35X29567 | Oven Back Insulation |
|
- | |||||
| 233 | WB35X29568 | Oven Bottom Insulation |
|
- | |||||
| 241 | WB48T10063 | Rack Oven |
|
- | |||||
| 242 | WB02X29072 | Drawer Wedge |
|
- | |||||
| 251 | WB44T10059 | Bake Element |
|
- | |||||
| 252 | WB44X30616 | Broil Unit Asm |
|
- | |||||
| 253 | WS01F02431 | Sensor Asm (Replaces: WB21X22134) |
|
Immediately | $ 27.18 | ||||
| 254 | WG02F02750 | Terminal Block Asm (Replaces: WB17T10011) |
|
Immediately | $ 143.06 | ||||
| 255 | WB7X7175 | Trim Latch |
|
- | |||||
| 260 | WB25X42688 | Halogen Lamp Assembly |
|
- | |||||
| 261 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 268 | WB02T10578 | Anti-tip Bracket Asm |
|
- | |||||
| 269 | WB34X29565 | Terminal Block Mount |
|
- | |||||
| 272 | WG02L01603 | Side Panel Support (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 277 | WB10X29566 | Hinge Receiver |
|
- | |||||
| 282 | WB38X33649 | Vent Tube |
|
- | |||||
| 292 | WB02X33180 | Rear Support |
|
- | |||||
| 293 | WG02L01594 | Drawer Support Frt (Replaces: WB48T10013) |
|
$ 5.72 | |||||
| 296 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 5.72 | ||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 755 | WZ04X0044 | Screw |
|
- | |||||
| 761 | WB1X5904 | Scr 8-18 Ba |
|
- | |||||
| 801 | WB01M10002 | Screw |
|
- | |||||
| 823 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 1007 | WB01T10037 | Screw 8-18 Ba Tw 7/16 S |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
