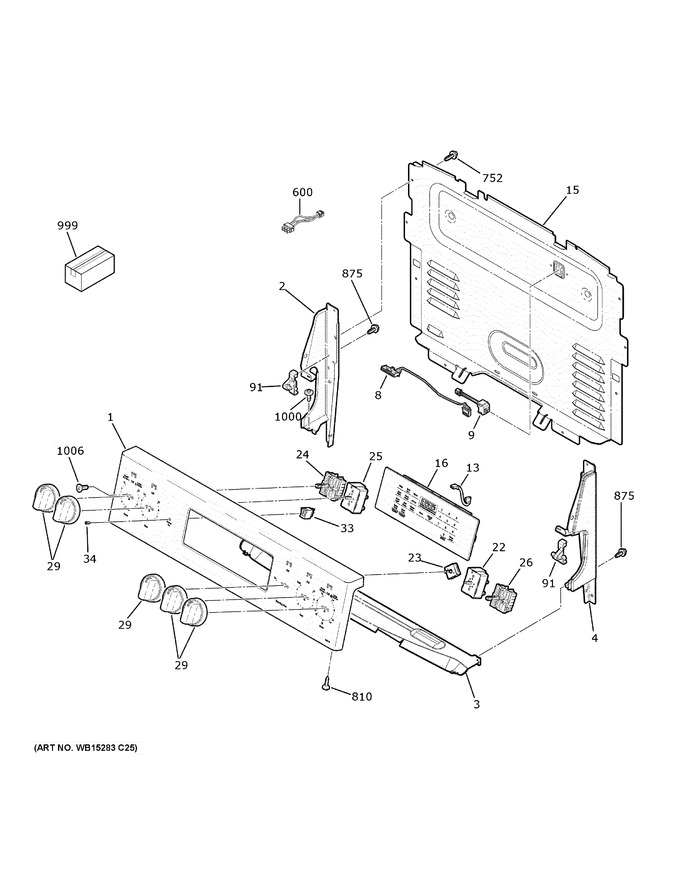

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB07X37719		Black Stainless Control Panel Trim		Appelez-nous	-
2	WB07X29534		End Plate Lh Dg		Appelez-nous	-
3	WB34X28565		Backguard Shield Heat		Appelez-nous	-
4	WB07X29535		End Plate Rh Dg		Appelez-nous	-
8	WB18X38827		Harness Rj45 Wifi		Appelez-nous	-
9	WB18X43048		Harness Rj45 Int Connect		Appelez-nous	-
13	WB18X30704		Jumper		Appelez-nous	-
14	WH22X29073		Connected Wifi Board		Appelez-nous	-
15	WB34X41219		Cover Control		Appelez-nous	-
16	WB27X41246		Glass Control Panel & Board		Appelez-nous	-
22	WB24T10022		Inf Switch Control 1250w				$ 48.75
23	WB24X40051		Switch Rotary		Appelez-nous	-
24	WB24X25013		Switch Infinite Control		Appelez-nous	-
25	WG02F04022		Control Surf Elem   (Replaces: WB24T10146)			Immediately	$ 53.80
26	WB24X25152		Switch Infinite Control		Appelez-nous	-
29	WB03X29165		Knob Asm Ts		Appelez-nous	-
33	WB25X20005		Light Indicator Pilot		Appelez-nous	-
34	WB25X24023		Lens		Appelez-nous	-
91	WB10T10116		Pin Rangetop Hinge		Appelez-nous	-
600	WB18X39986		Temperature Sensor Harness Wire		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
810	WB01X26365		Scr 8-18 Ab #60rh 1/2 Ni		Appelez-nous	-
875	WB01T10046		Wz4x245d		Appelez-nous	-
999	31-10617		Instruction Install		Appelez-nous	-
999	31-2000777		Pm Mini Manual And Wiring		Appelez-nous	-
999	49-2000999		Pm Owners Manual		Appelez-nous	-
1000	WB01T10126		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
1006	WB01X23501		Scr 8-32 Tt Flp .270		Appelez-nous	-
