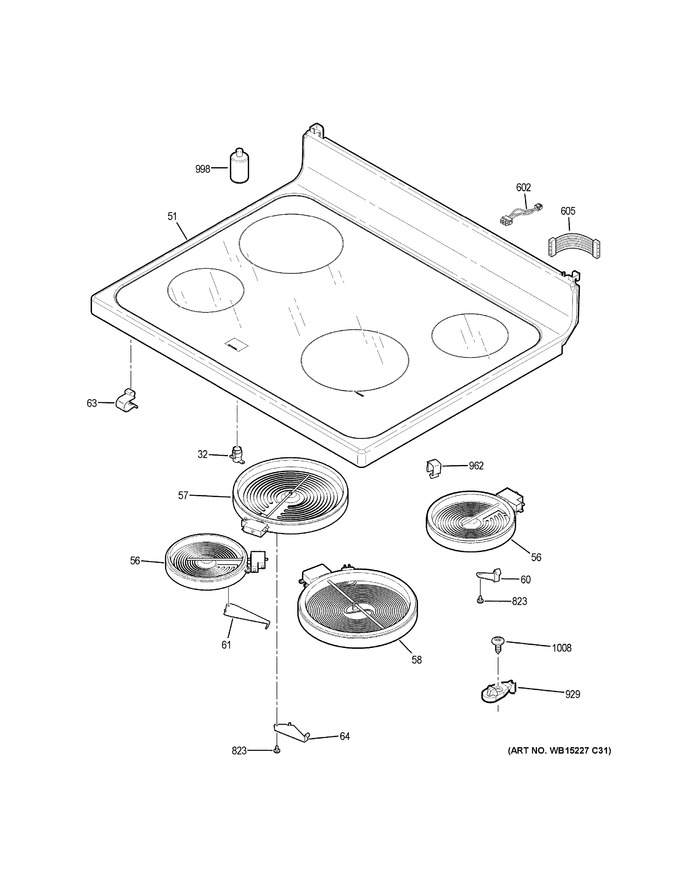

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WG02F04788 | Hot Cooktop Light Indicator (Replaces: WB27T10668) |
|
Immediately | $ 14.29 | ||||
| 51 | WB62X20907 | Rangetop Glass Asm (bk) |
|
- | |||||
| 56 | WG02F02056 | Element Radiant 5.5 In (Replaces: WB30T10145) |
|
Immediately | $ 133.34 | ||||
| 57 | WG02F04090 | Element Radiant 8 In (Replaces: WB30T10132) |
|
Immediately | $ 115.25 | ||||
| 58 | WG02F04323 | Element Haliant 8 In (Replaces: WB30T10136) |
|
Immediately | $ 113.76 | ||||
| 60 | WB02X20902 | Bracket Radiant Element |
|
- | |||||
| 61 | WB02X20901 | Bracket Radiant Element |
|
- | |||||
| 63 | WB09X40389 | Spring Radiant Element |
|
- | |||||
| 64 | WB02T10609 | Bracket Radiant Element |
|
- | |||||
| 602 | WB18X30705 | Lead Wire 14 Ga Gn |
|
- | |||||
| 605 | WB18X31191 | Maintop And Infinite Switch Harness |
|
- | |||||
| 823 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02T10177 | Clip Cable |
|
- | |||||
| 998 | WB64X93 | Glass Cleaner |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
