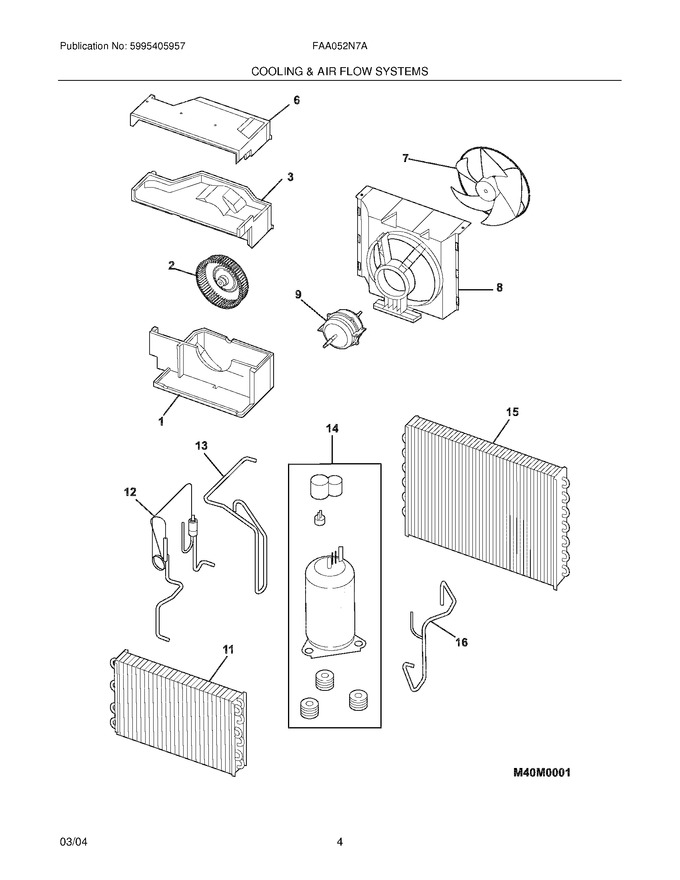

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304437105 | Scroll,blower Housing ,bottom ,w/drain Tray |
|
- | |||||
| 3 | 5304437104 | Scroll,blower Housing ,top |
|
- | |||||
| 6 | 5304437103 | Cover,blower Scroll ,top |
|
- | |||||
| F11 | 5304437086 | Evaporator |
|
- | |||||
| F12 | 5304437094 | Capillary Tube,assy W/strainer |
|
- | |||||
| F13 | 5304437099 | Discharge Tube |
|
- | |||||
| F14 | 5304437078 | Compressor Assyincludes Overload, Wiring Cover, Andmounting Grommets |
|
- | |||||
| F15 | 5304437085 | Condenser |
|
$ 184.60 | |||||
| F16 | 5304437098 | Suction Tube |
|
- | |||||
| F2 | 5304437891 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F7 | 5304437049 | Fan Blade,propeller ,axial Flow |
|
$ 26.51 | |||||
| F8 | 5304437056 | Shroud,fan Housing |
|
- | |||||
| F9 | 5304437109 | Motor,fan |
|
- |
