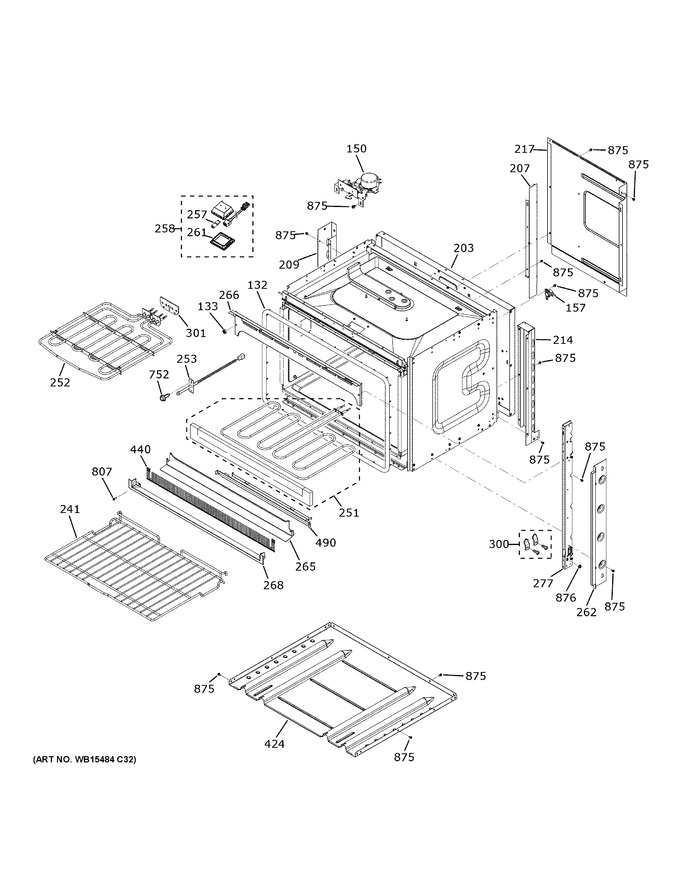

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
132	WB35X32825		Oven Door Gasket				$ 44.83
133	WB03T10341		Bumper Door		Appelez-nous	-
150	WB10X28391		Latch Asm		Appelez-nous	-
157	WB24T10164		Switch High Limit		Appelez-nous	-
203	WB63X32829		Rear Insulation Retainer		Appelez-nous	-
207	WB34T10134		Divider Air Bottom		Appelez-nous	-
209	WB34X35265		Channel Rear		Appelez-nous	-
214	WB55X10971		Channel Rear		Appelez-nous	-
217	WB34T10136		Cover - Upper Rear Duct		Appelez-nous	-
241	WB48X31582		Oven Rack		Appelez-nous	-
251	WB44X21667		Hidden Bake Element Kit		Appelez-nous	-
251	WB44X48678		Hidden Bake Element		Appelez-nous	-
252	WB44T10128		Element Broil Asm		Appelez-nous	-
252	WB44X48685		Broil Element		Appelez-nous	-
253	WB21X10165		Sensor Asm		Appelez-nous	-
257	WB25T10102		Lamp Halogen Bulb G9		Appelez-nous	-
258	WB25X31221		Top Halogen Lamp Asm		Appelez-nous	-
261	WB34X31317		Oven Light Lens		Appelez-nous	-
262	WB07X34905		Stainless Trim Vert Side (swo)		Appelez-nous	-
265	WB07X21187		Trim Vent Lwr		Appelez-nous	-
266	WB07X32831		Upper Vent Trim		Appelez-nous	-
268	WB07X32832		Bottom Trim		Appelez-nous	-
277	WB07X35692		Brace Vertical Left		Appelez-nous	-
277	WB07T10754		Brace Vertical Right Blk		Appelez-nous	-
300	WG02A01591		Hinge Bracket Asm Kit   (Replaces: WB49X21652)				$ 126.62
301	WB35X21972		Gasket Broil Element		Appelez-nous	-
424	WB56X43352		Cover Bottom Air Duct		Appelez-nous	-
440	WB34X43346		Screen Support		Appelez-nous	-
490	WB55T10197		Cover Hidden Bake		Appelez-nous	-
752	WB01X21742		Screw		Appelez-nous	-
807	WB1X1174		Screw-nickle		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
876	WB01T10127		Lock Nut		Appelez-nous	-
