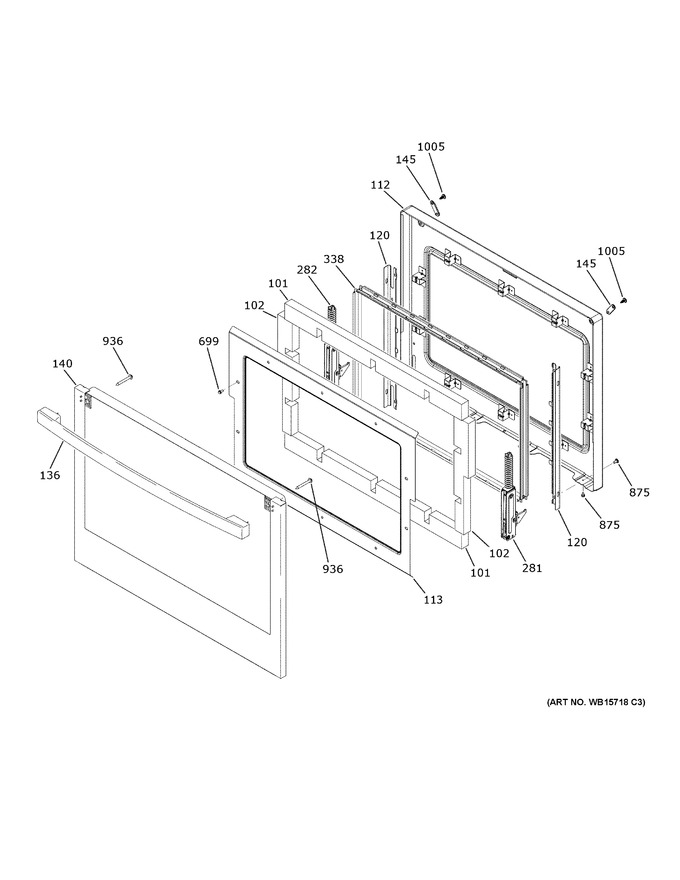

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WB35X21737 | Insulation Dr Top |
|
- | |||||
| 102 | WB35X31513 | Door Side Insulation |
|
- | |||||
| 112 | WB63X32569 | Oven Door Liner Asm |
|
- | |||||
| 113 | WB34X31516 | Door Insulation Retainer |
|
- | |||||
| 120 | WB34X28482 | Liner Support |
|
- | |||||
| 136 | WB15X41506 | Stainless Steel Handle And Endcap |
|
- | |||||
| 140 | WB56X45686 | Outer Door-stainless |
|
- | |||||
| 145 | WB02X32816 | Door Liner Plug |
|
- | |||||
| 281 | WB10X35065 | Hinge Door Rt |
|
- | |||||
| 282 | WB10X35066 | Hinge Door Lt |
|
- | |||||
| 338 | WG02L08666 | Window Pack Asm (Replaces: WB56X27480) |
|
Immediately | $ 638.33 | ||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 936 | WB01T10132 | Screw 10-32 Hex 1 3/4 In |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 |
