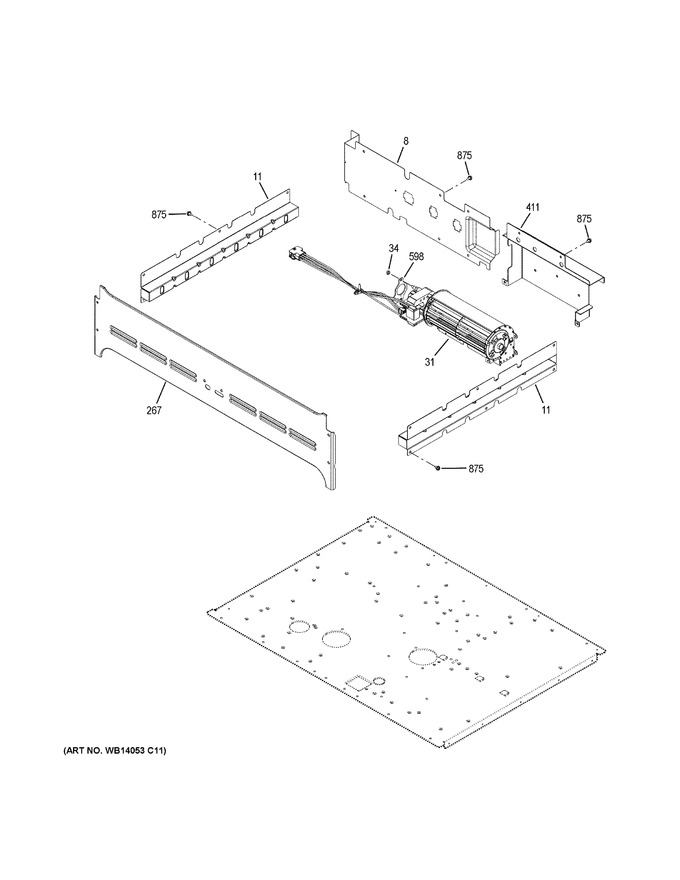

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WB34X23621 | Extension Rear |
|
- | |||||
| 11 | WB34T10146 | Extension Side |
|
- | |||||
| 31 | WB26X35089 | Cooling Fan Lower |
|
- | |||||
| 34 | WB01T10133 | Nut Hex M4-.7 Thread |
|
- | |||||
| 267 | WB07X35647 | Trim Vent Middle |
|
- | |||||
| 411 | WB37X35106 | Bracket Fan Mounting Lower |
|
- | |||||
| 598 | WB27X28659 | Board Sensor |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 |
