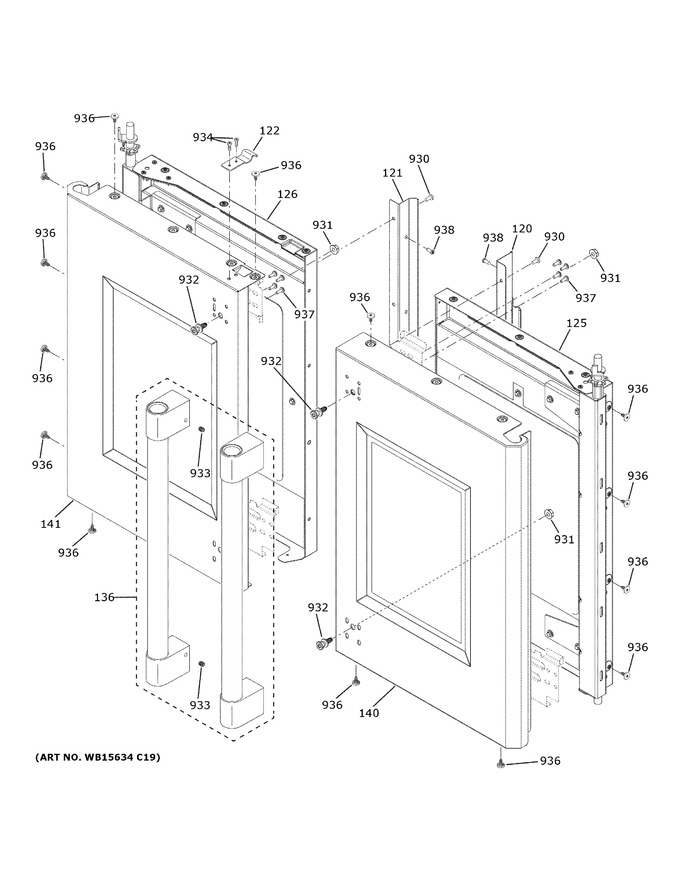

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 120 | WB35X23767 | Seal Center Rt |
|
- | |||||
| 121 | WB35X23775 | Seal Center Lt |
|
- | |||||
| 122 | WB10X23776 | Plate Strike |
|
- | |||||
| 125 | WB56X23765 | Door Inr Asm Rt |
|
- | |||||
| 126 | WB56X23773 | Door Inr Asm Lt |
|
- | |||||
| 136 | WB15X36245 | French Door Pack Handle Asm (ss) |
|
- | |||||
| 140 | WB56X43987 | Right Outer Door-stainless |
|
- | |||||
| 141 | WB56X43988 | Left Outer Door-stainless |
|
- | |||||
| 930 | WB01X36425 | Screw Tc8-32x.375hexni |
|
- | |||||
| 931 | WB01X31575 | Hex Nut 1/4-20 |
|
- | |||||
| 932 | WB01X31574 | Mounting Stud |
|
- | |||||
| 933 | WG03A01608 | Set Screw (Replaces: WR01X11014) |
|
Immediately | $ 5.72 | ||||
| 934 | WB01X29985 | Screw 8-32 Mch Pnt-15 7/16 |
|
- | |||||
| 936 | WB01X24096 | Scr 8-18x |
|
- | |||||
| 937 | WB01X23619 | Screw |
|
- | |||||
| 938 | WB01X23768 | Screw 8-18 Ab Pnt15 1/2 S |
|
- |
