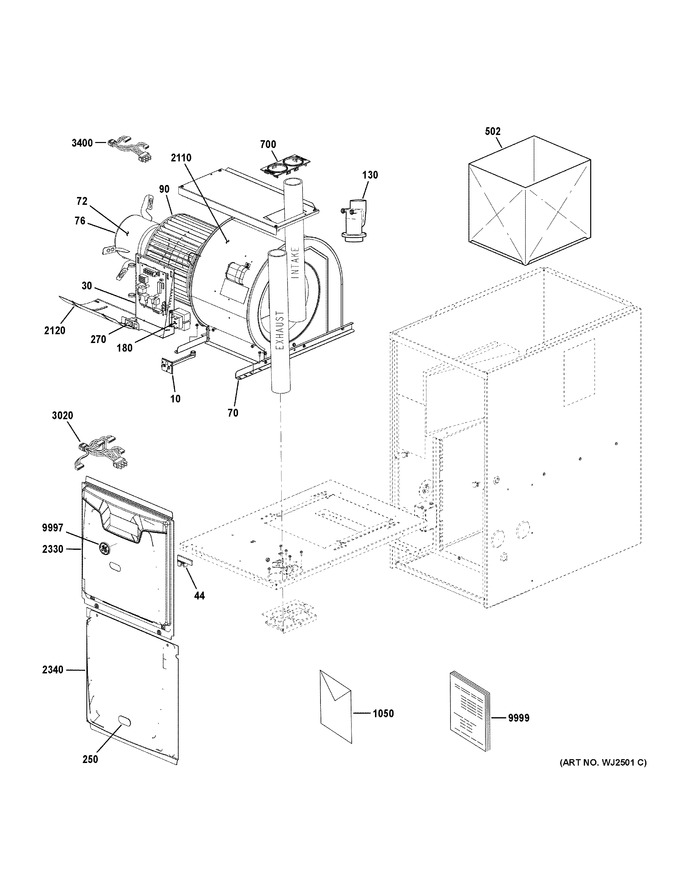

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 16G42 | 105224-01 Limit Control (stilt) 230f |
|
- | |||||
| 30 | 16C81 | 607436-03 Ignition Control Kit |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 81W33 | 607421-02 X13 1/2hp Motor - Programmed |
|
- | |||||
| 72 | 23V72 | Motor Repl 1/2hp 115v Ct |
|
- | |||||
| 76 | R100728-02 | Mtr Blo Unprog 1/2hp 5s 115v 1100-(cto) |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 130 | 16V71 | Assy-flue Exhaust Tee-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 250 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 502 | 15P44 | Plenum -gas/air-(cto) |
|
- | |||||
| 700 | 16A62 | Screen-intake-(cto) |
|
- | |||||
| 1050 | 537918-02 | Wiring Diagram Label-(cto) |
|
- | |||||
| 2110 | 57M87 | Hsg-blwr 10x8 612256-02-(cto) |
|
- | |||||
| 2120 | 68W48 | Blwr Hsg Cutoff Plate-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2330 | 623817-01U | Top Door B-width 90% Uf Blwr-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 2340 | 623652-04U | Btm Door B-width 90% Uf Vest-(cto) |
|
- | |||||
| 3020 | 16V75 | Harness Unit Uln Elite-(cto) |
|
- | |||||
| 3400 | 20A21 | Motor Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
