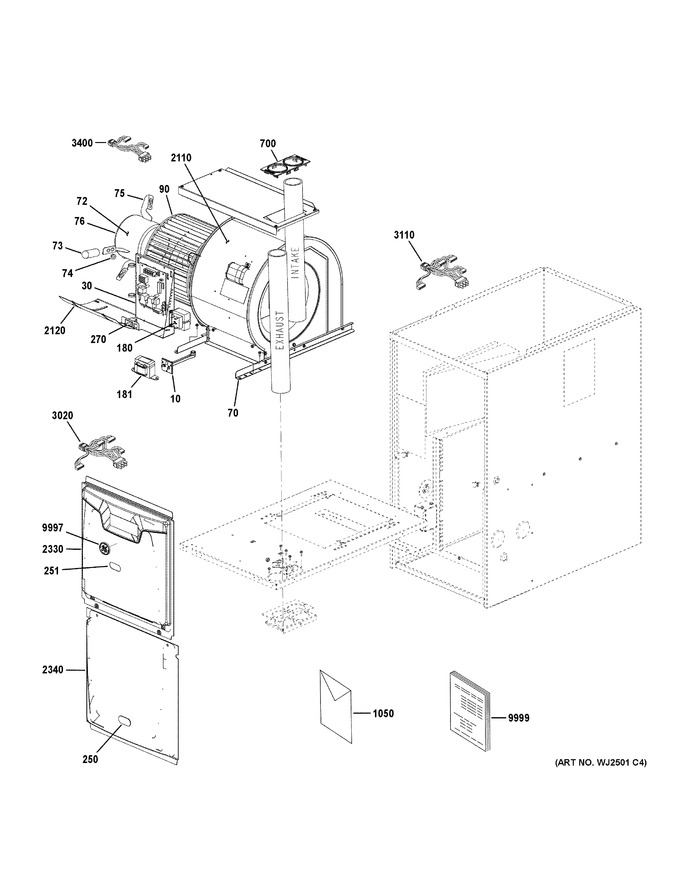

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 73W19 | 102857-06 Control-limit (155f) |
|
Immediately | $ 65.75 | ||||
| 30 | 14Y53 | 607308-14 Kit-ignition Control |
|
$ 550.99 | |||||
| 70 | 32M17 | Mount-motor-(cto) |
|
- | |||||
| 72 | 10B67 | Motor-blower Only (module Sold Separate) |
|
$ 935.99 | |||||
| 73 | 42W05 | Sleeve-(cto) |
|
- | |||||
| 74 | 43H81 | Grommet-(cto) |
|
- | |||||
| 75 | 49L97 | Arm-motor Mtg-(cto) |
|
- | |||||
| 76 | 10B77 | 610587-10 Module Kit |
|
- | |||||
| 90 | 36M22 | Wheel-blower-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 250 | 49L04 | Sight Glass-(cto) |
|
- | |||||
| 251 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 700 | 72W51 | Collar-air Inlet (df)-(cto) |
|
- | |||||
| 1050 | 537437-01 | Wiring Diagram-(cto) |
|
- | |||||
| 2110 | 57M89 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 81L92 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623652-03U | Top Door B-width 80/90% Df Blwr-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 2340 | 601497-04U | Btm Door B-width 90% Df Vest-(cto) |
|
- | |||||
| 3020 | 94W06 | Harness-wiring-(cto) |
|
- | |||||
| 3110 | 27M25 | Harn-wire-(cto) |
|
- | |||||
| 3400 | 27M11 | Harness-wiring-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
