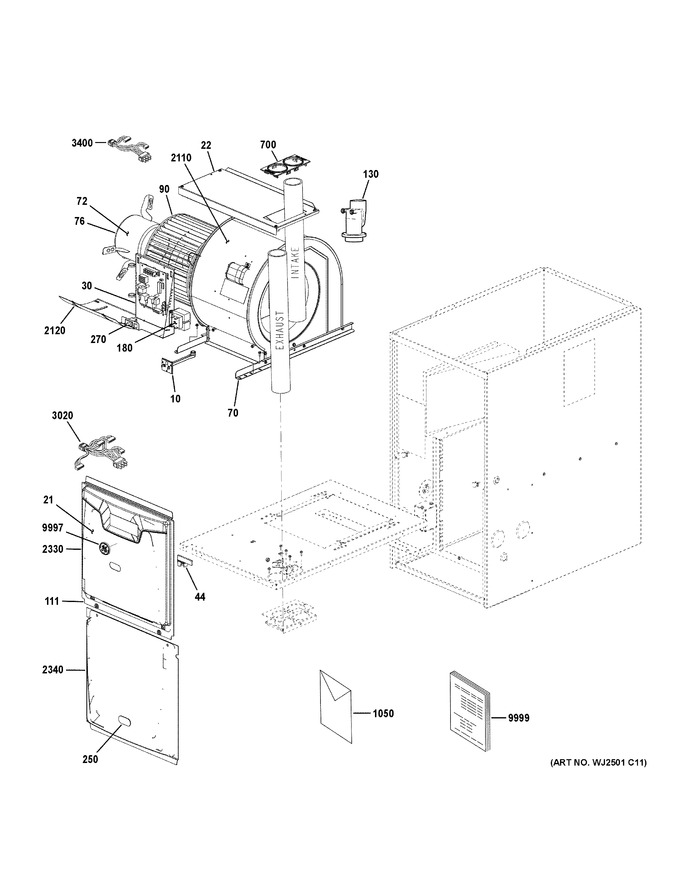

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 75W15 | Control-limit(165f)main-(cto) |
|
Immediately | $ 65.61 | ||||
| 21 | R00419B164 | Armstrong Text Slate Gray (doors)-(cto) |
|
- | |||||
| 22 | R00419B165 | Armstrong Text Plt Gray (top&cab)-(cto) |
|
- | |||||
| 30 | 19J99 | 607308-21 Kit - Ignition Control |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 33W12 | Mtr 1/2hp Var Spd 120/240/60/1-(cto) |
|
$ 1,136.99 | |||||
| 76 | 84W85 | 606008-04 3.0 Ecm Hp Module Only |
|
Immediately | $ 1,651.99 | ||||
| 90 | 69W52 | Wheel-blwr 10 X 9 X 1/2-(cto) |
|
- | |||||
| 111 | 74W14 | Panel Filler Door Trim-(cto) |
|
- | |||||
| 130 | 71W26 | Flue-exhaust-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 250 | 49L04 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 700 | 71W27 | Collar-air Inlet-(cto) |
|
$ 82.98 | |||||
| 1050 | 537492-01 | Wiring Diagram Label-(cto) |
|
- | |||||
| 2110 | 70W40 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 69W05 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 3020 | 12T02 | Harness - Wiring-(cto) |
|
- | |||||
| 3400 | 15T91 | Harness Motor 3.0 Ecm-(cto) |
|
$ 59.99 | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
