SELECT A DIAGRAM

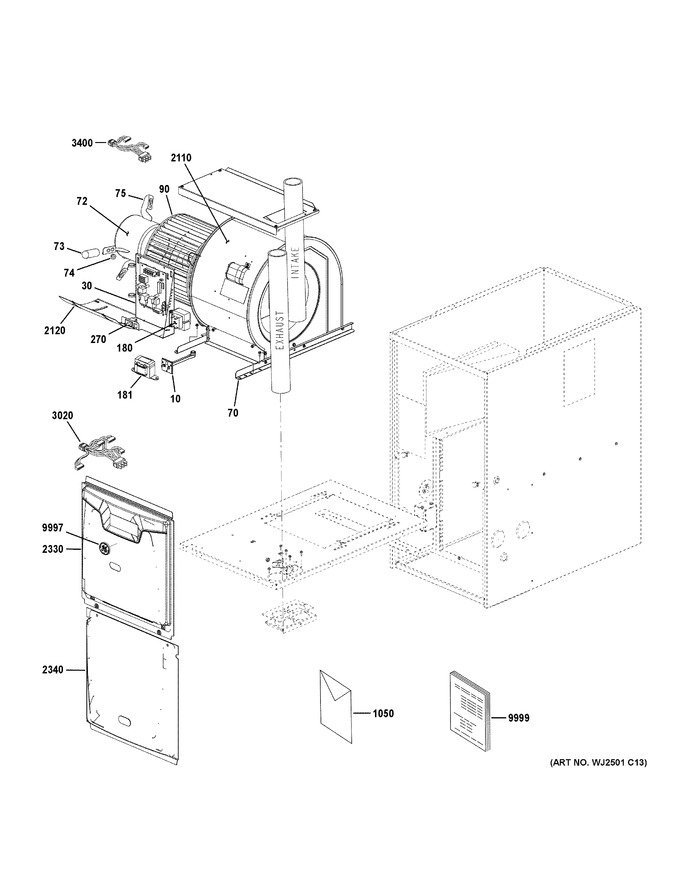

Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 97W45 | 102135-16 Control-limit (140f) |
|
- | |||||
| 30 | 16C81 | 607436-03 Ignition Control Kit |
|
- | |||||
| 70 | 32M17 | Mount-motor-(cto) |
|
- | |||||
| 72 | 81W38 | 607421-07 X13 1hp Motor - Programmed |
|
- | |||||
| 73 | 42W05 | Sleeve-(cto) |
|
- | |||||
| 74 | 43H81 | Grommet-(cto) |
|
- | |||||
| 75 | 49L97 | Arm-motor Mtg-(cto) |
|
- | |||||
| 90 | 69W50 | Wheel-blower 11 X 11 X 1/2-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 1050 | 537573-01 | Sticker - Wiring Diagram-(cto) |
|
- | |||||
| 2110 | 70W42 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 69W08 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623850-01U | Top Door D-width 90/80 Uf Blwr-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 623654-02U | Btm Door B-width 90% Uf Vest-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 3020 | 82W07 | 607348-02 Harness-wiring-(cto) |
|
- | |||||
| 3400 | 20A21 | Motor Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
