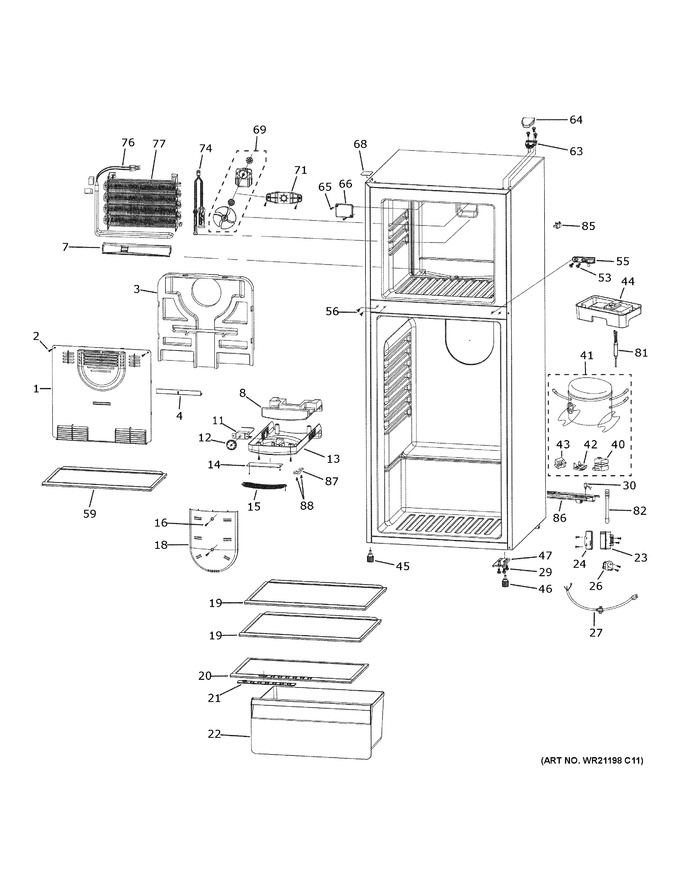

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Cabinet
Doors
Lokring Connectors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR14X41805 | Evaporator Cover |
|
- | |||||
| 2 | WR01X29254 | Evaporator Cover Screw |
|
- | |||||
| 3 | WR14X29253 | Evaporator Back Cover - Foam |
|
- | |||||
| 4 | WR14X29243 | Air Temp Slide |
|
- | |||||
| 7 | WR14X29251 | Drain Trough |
|
- | |||||
| 8 | WR14X29247 | Cold Control Housing Duct |
|
- | |||||
| 11 | WR09X30949 | Thermostat |
|
- | |||||
| 12 | WR01X29289 | Thermostat Knob |
|
- | |||||
| 13 | WR14X29246 | Cold Control Housing |
|
- | |||||
| 14 | WR55X29270 | Led Board |
|
- | |||||
| 15 | WR14X30946 | Led Cover |
|
- | |||||
| 16 | WR01X29254 | Evaporator Cover Screw |
|
- | |||||
| 18 | WR14X30945 | Fresh Food Air Tower |
|
- | |||||
| 19 | WR71X30200 | Glass Shelf |
|
- | |||||
| 20 | WR71X29296 | Vegetable Pan Cover |
|
- | |||||
| 21 | WR71X29297 | Crisper Slider |
|
- | |||||
| 22 | WR71X29295 | Vegetable Pan |
|
- | |||||
| 23 | WR14X29290 | Timer Box |
|
- | |||||
| 24 | WR14X29291 | Timer Box Cover |
|
- | |||||
| 26 | WR09X29252 | Electronic Defrost Timer |
|
$ 91.03 | |||||
| 27 | WR55X29276 | Power Cord |
|
- | |||||
| 29 | WR01X29269 | Hexagon Head Bolts |
|
- | |||||
| 30 | WR55X32900 | Capacitor |
|
- | |||||
| 40 | WR87X32902 | Compressor Electricals Cover |
|
- | |||||
| 41 | WR87X41625 | Compressor Kit |
|
- | |||||
| 42 | WR87X41226 | Overload Protector |
|
- | |||||
| 43 | WR87X32904 | Starter |
|
- | |||||
| 44 | WR14X29250 | Drain Pan |
|
$ 29.85 | |||||
| 45 | WR01X29272 | Leveling Leg Left |
|
- | |||||
| 46 | WR01X29273 | Leveling Leg Right |
|
- | |||||
| 47 | WR13X29244 | Bottom Hinge |
|
- | |||||
| 53 | WR01X29268 | Hexagon Bolt Cross Recessed |
|
- | |||||
| 55 | WR13X41485 | Middle Hinge |
|
- | |||||
| 56 | WR01X29275 | Middle Hinge Plug Button |
|
- | |||||
| 59 | WR71X30948 | Freezer Glass Shelf |
|
- | |||||
| 63 | WR13X41486 | Top Hinge |
|
- | |||||
| 64 | WR13X29293 | Top Hinge Cover |
|
- | |||||
| 65 | WR01X29258 | Flat Head Tapping Screw |
|
- | |||||
| 66 | WR01X29298 | Wiring Box Cover |
|
- | |||||
| 68 | WR13X30954 | Top Hinge Hole Cover Black |
|
- | |||||
| 69 | WR01X29257 | Evaporator Fan Motor & Blade |
|
- | |||||
| 71 | WR14X29256 | Evaporator Fan Bracket |
|
- | |||||
| 74 | WR55X29255 | Evaporator Defrost Harness |
|
- | |||||
| 76 | WR09X29249 | Defrost Heater |
|
- | |||||
| 77 | WR87X32202 | Evaporator |
|
- | |||||
| 81 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 82 | WR87X30876 | R600 Process Valve W/ Red Cap |
|
- | |||||
| 85 | WR23X10699 | Lamp Switch |
|
- | |||||
| 86 | WR17X32533 | Compressor Base |
|
- | |||||
| 87 | WR02X33072 | Mounting Clip |
|
- | |||||
| 88 | WR01X20039 | Screw |
|
- |
