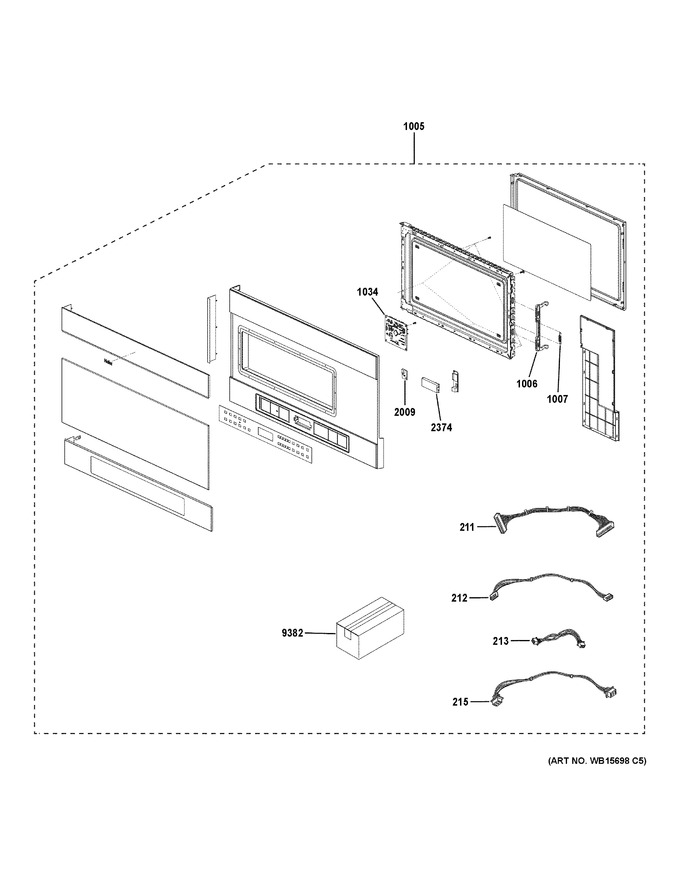

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 211 | WB18X38425 | Harness From Pcb Display To Door Hinge P |
|
- | |||||
| 212 | WB18X38428 | Harness From Led Display To Pcb Display |
|
- | |||||
| 213 | WB18X35389 | Harness From Main Board To Pcb Asm |
|
- | |||||
| 215 | WB18X38429 | Harness,single |
|
- | |||||
| 1005 | WB56X37956 | Stainless Steel Door Asm |
|
- | |||||
| 1006 | WB10X35494 | Door Key |
|
- | |||||
| 1007 | WB09X10017 | Spring Latch Door |
|
- | |||||
| 1034 | WB27X38447 | Pcb Assembly,display |
|
- | |||||
| 2009 | WB27X35569 | Pcb Asm |
|
- | |||||
| 2374 | WB02X38446 | Led Display |
|
- | |||||
| 9382 | WB01X10305 | Otr Hardware Asm Bag |
|
- |
