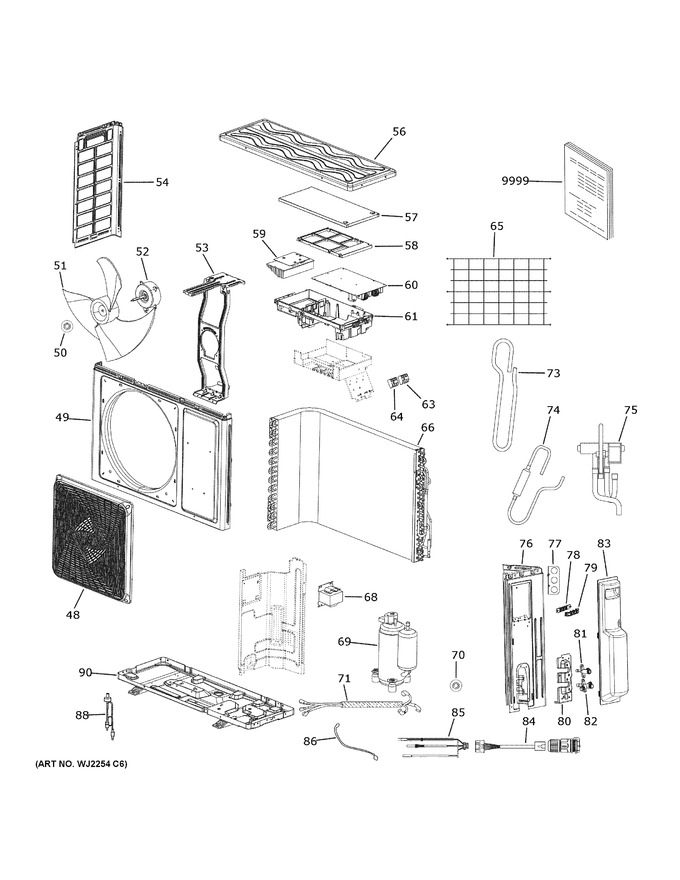

SELECT A DIAGRAM

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
48	WJ73X32540		Fan Grille		Appelez-nous	-
49	WJ76X32534		Casing Assembly		Appelez-nous	-
50	WJ01X23150		Flange Nut				$ 1.77
51	WJ73X32538		Fan Blade		Appelez-nous	-
52	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
53	WJ65X27874		Fan Motor Bracket		Appelez-nous	-
54	WJ71X32536		Left Side Panel		Appelez-nous	-
56	WJ71X32533		Top Panel		Appelez-nous	-
57	WJ76X28173		Elctrical Box Cover		Appelez-nous	-
58	WJ65X27919		Power Control Board Bracket		Appelez-nous	-
59	WJ26X27939		Inverter Assembly		Appelez-nous	-
60	WJ26X27941		Outdoor Power Control Board		Appelez-nous	-
61	WJ76X32493		Electrical Box		Appelez-nous	-
63	WJ27X27922		Indoor Terminal Block		Appelez-nous	-
64	WJ27X23010		Terminal Block Supply		Appelez-nous	-
65	WJ71X27893		Rear Grille		Appelez-nous	-
66	WJ88X27926		Condenser		Appelez-nous	-
68	WJ27X22981		Reactor		Appelez-nous	-
69	WJ98X27925		Compressor		Appelez-nous	-
70	WJ01X26442		Compressor Nut		Appelez-nous	-
71	WJ35X27920		Outdoor Wire Harness		Appelez-nous	-
73	WJ53X27928		Suction Tube		Appelez-nous	-
74	WJ53X27929		Discharge Tube		Appelez-nous	-
75	WJ53X27931		4-way Valve		Appelez-nous	-
76	WJ71X32537		Right Side Panel		Appelez-nous	-
77	WJ65X27113		Strain Relief Bracket		Appelez-nous	-
78	WJ65X27899		Strainrelief Top		Appelez-nous	-
79	WJ65X27900		Strain Relief Bottom		Appelez-nous	-
80	WJ65X32535		Service Valve Mount		Appelez-nous	-
81	WJ53X24973		Liquid Service Valve		Appelez-nous	-
82	WJ53X24974		Vapor Service Valve		Appelez-nous	-
83	WJ65X32539		Handle		Appelez-nous	-
84	WJ27X27115		Rj45		Appelez-nous	-
85	WJ26X27921		Ambient Thermistor		Appelez-nous	-
86	WJ26X23009		Suction Sensor				$ 22.15
88	WJ53X28177		Electronic Expansion Valve		Appelez-nous	-
90	WJ76X32495		Bottom Plate Assy.		Appelez-nous	-
9999	31-5000276		Pm Install Instructions		Appelez-nous	-
