SELECT A DIAGRAM
Center Spacer
Control Panel
Convection Fan
Lower Door
Lower Oven
Pedestal
Upper Door
Upper Oven
SELECT A DIAGRAM
New Model Search:

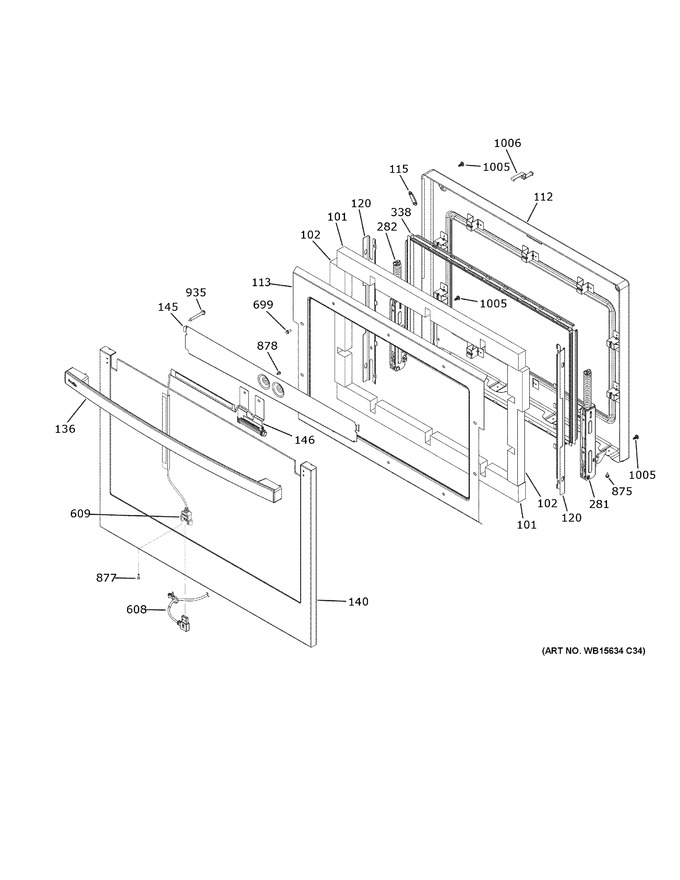

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WB35X21737 | Insulation Dr Top |
|
- | |||||
| 102 | WB35X31513 | Door Side Insulation |
|
- | |||||
| 112 | WB63X32569 | Oven Door Liner Asm |
|
- | |||||
| 113 | WB34X31516 | Door Insulation Retainer |
|
- | |||||
| 115 | WB02X32816 | Door Liner Plug |
|
- | |||||
| 120 | WB34X28482 | Liner Support |
|
- | |||||
| 136 | WB15X41507 | Stainless Steel Handle And Endcap |
|
- | |||||
| 140 | WB56X43364 | Upper Outer Door-stainless |
|
- | |||||
| 145 | WB34X35586 | Deflector Oven Door |
|
- | |||||
| 146 | WB34X34990 | Camera Asm |
|
- | |||||
| 281 | WB10X36946 | Soft Close Hinge Right Door |
|
- | |||||
| 282 | WB10X36955 | Soft Close Hinge Left Door |
|
- | |||||
| 338 | WB56X27662 | Window Pack Asm |
|
- | |||||
| 608 | WB18X35000 | Harness Wire Camera - Ui To Door |
|
- | |||||
| 609 | WB18X35646 | Harness Wire Camera To Door |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 877 | WB01X33357 | Screw 6-32 Flt-10 1/4 |
|
- | |||||
| 878 | WB1X1178 | Screw |
|
- | |||||
| 935 | WB01T10132 | Screw 10-32 Hex 1 3/4 In |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 | ||||
| 1006 | WB01X41366 | Stop Door Dehydrate |
|
- |
