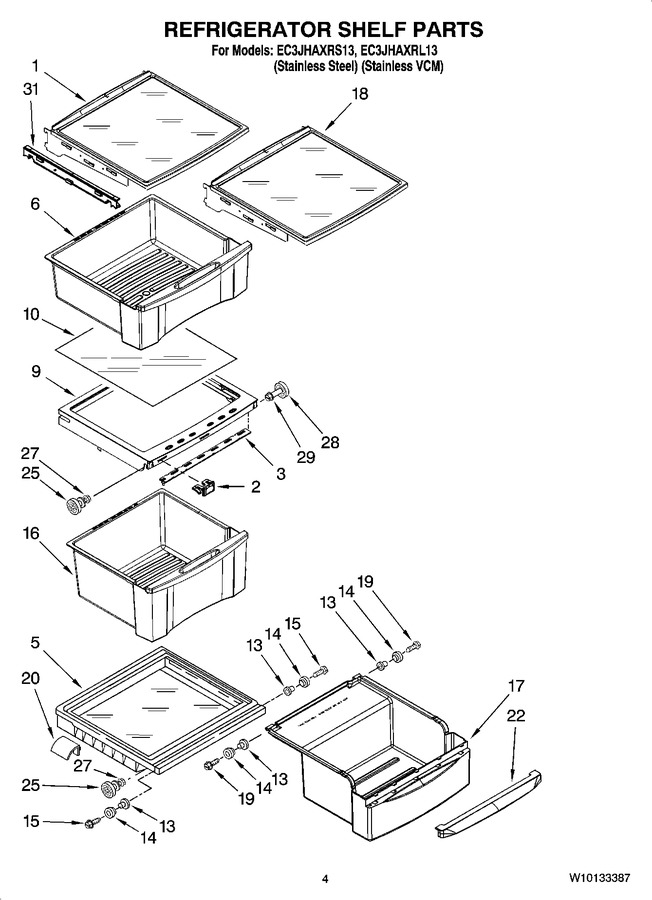

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2223288		Pan Assembly (includes 31)   (Replaces: 2223288)				$ 397.99
2	2223309		Button, Humidity				$ 34.60
3	2223308		Slide, Humidity				$ 77.01
5	WPW10270150		Cover, Meat Pan (includes Items 13, 14, 15 & 20)   (Replaces: 2203027)				$ 342.45
6	2223261		Snack Pan		Appelez-nous	-
9	2223592		Cover, Crisper (includes 2 & 3)		Appelez-nous	-
10	2223591		Glass, Cover				$ 88.38
13	2174478		Eyelet, Roller				$ 5.70
14	2188212		Roller		Appelez-nous	-
15	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
16	WPW10233488		Crisper Pan   (Replaces: 2223235)				$ 192.04
17	2223526		Meat Pan (includes 13, 14, 19 & 22)		Appelez-nous	-
18	W10235943		Shelf And Frame Assembly (3)   (Replaces: 2224059)				$ 336.71
19	WP489261		Screw   (Replaces: 489261)				$ 7.61
20	2223487		Deflector				$ 83.68
22	2203029		Handle				$ 85.47
25	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 14.07
27	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
28	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
29	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
31	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05

    View Diagram in Separate Window       Print Part List
