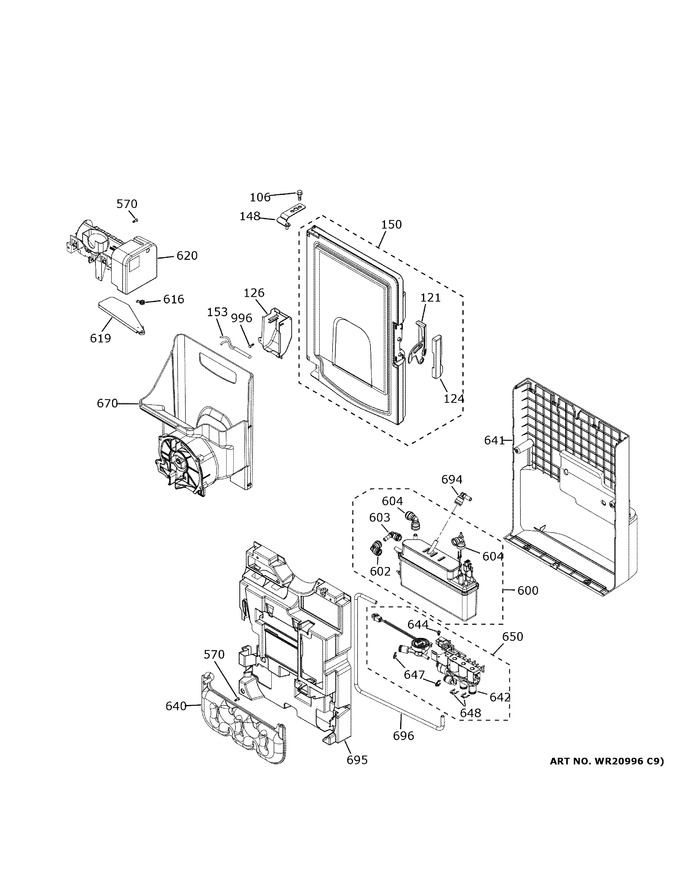

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR02X36706		Screw St3.9-1.4 Ab Flt20 16 S W		Appelez-nous	-
121	WR11X10031		Latch Icebox Door		Appelez-nous	-
124	WR02X23032		Cover Latch		Appelez-nous	-
126	WR17X32870		Ice Box Thermistor Cover		Appelez-nous	-
148	WR13X10972		Hinge Top Door Icebox		Appelez-nous	-
150	WR78X26087		Icebox Door Asm		Appelez-nous	-
153	WR01F01730		Sensor Temp Ff   (Replaces: WR55X10025)			Immediately	$ 16.29
570	WR02X36721		Screw St4.0-1.4 Ab Ihxwt20 20 S		Appelez-nous	-
600	WR17X26291		Tank Hot Water Asm		Appelez-nous	-
602	WR02X13753		Connector 90 Deg 5/16 Ht		Appelez-nous	-
603	WR02X13754		Connector 5/16 Stem Ht		Appelez-nous	-
604	WR02X13755		Connector 90 3/8-5/16 Ht		Appelez-nous	-
616	WR29X10112		Spring Feeler Arm		Appelez-nous	-
619	WR29X10110		Arm Feeler Im		Appelez-nous	-
620	WR30X29369		Icemaker		Appelez-nous	-
640	WR17X27627		Coiled Cold Water Tank		Appelez-nous	-
641	WR02X28026		Refrigertator Valve And Tank Cover		Appelez-nous	-
642	WR57X10101		Valve Tri Water		Appelez-nous	-
644	WR01X11019		Scr M4x1.59 Mch P 10mm S		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
648	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
650	WR57X24974		Valve Tri Water W Fm Asm		Appelez-nous	-
670	WR30X10174		Ice Bucket & Crusher		Appelez-nous	-
694	WR02X24977		Connector 5/16 Stem Ht		Appelez-nous	-
695	WR13X25912		Housing Tray Valve Tank		Appelez-nous	-
696	WR02X24975		Tube 3way Vlv To Hw Tank		Appelez-nous	-
996	WR02X36717		Screw St4.8-1.6 Ab Trt20 19 S		Appelez-nous	-
