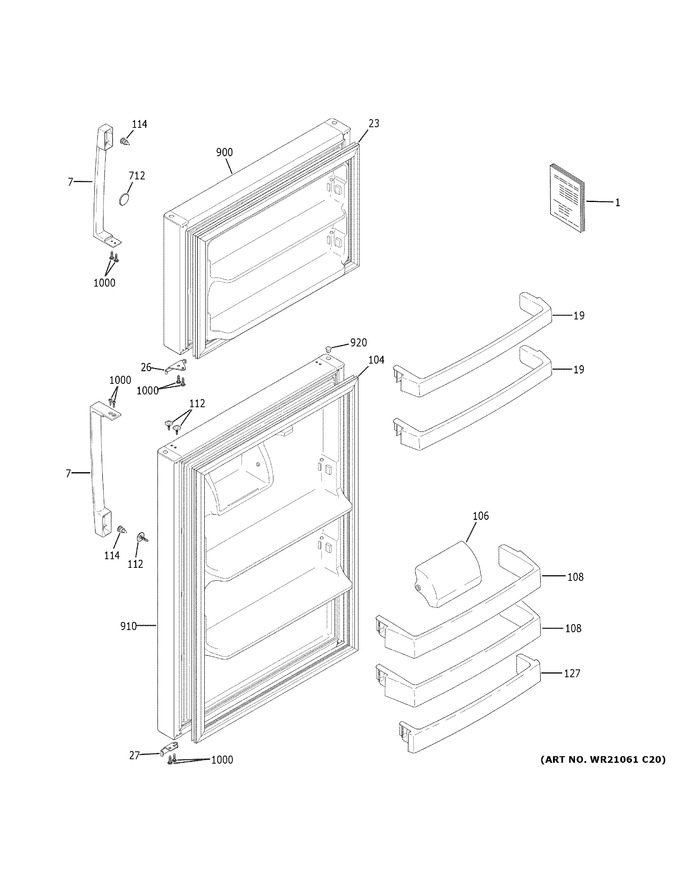

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1000431 | Pm Mini Manual And Wiring |
|
- | |||||
| 7 | WR12X31091 | Bisque Handle |
|
- | |||||
| 19 | WR71X30014 | Freezer Fixed Shelf |
|
- | |||||
| 23 | WR14X27230 | Gasket Door Fz Ww |
|
- | |||||
| 26 | WR02X28289 | Freezer Door Stop Bisque |
|
- | |||||
| 27 | WR02X28285 | Refrigerator Door Stop Bisque |
|
- | |||||
| 104 | WR14X27231 | Gasket Door Ff Ww |
|
- | |||||
| 106 | WR22X30023 | Dairy Door |
|
- | |||||
| 108 | WR17X30024 | Fresh Food Shelf |
|
- | |||||
| 112 | WR01X21263 | Plug Door Rvsbl Cc |
|
- | |||||
| 114 | WR01X21158 | Fastener Door Handle |
|
- | |||||
| 127 | WR17X22911 | Shelf Fixed Bottom Ff |
|
- | |||||
| 712 | WR02X31306 | Chrome Ge Badge |
|
- | |||||
| 900 | WR78X22924 | Door Foam Asm Fz Cc |
|
- | |||||
| 910 | WR78X31206 | Bisque Fresh Food Door 18 |
|
- | |||||
| 920 | WR02X10850 | Plug Button Thimble Bisque |
|
- | |||||
| 1000 | WR01X21151 | Scr 10-16 Ab Trp 3/4 Nbs |
|
- |
