Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-1000533 Pm Mini Manual And Wiring Appelez-nous -
1 49-1000622 Pm Quick Owners Manual Appelez-nous -
33 WR78X39326 Refrigerator Door - Left Hand Dispenser Appelez-nous -
35 WR14X30117 Refrigerator - Fresh Food Door Gasket Sl Appelez-nous -
37 WR01X39781 Fastener In-Stock Immediately $ 24.71

38 WR02X24874 Stop Door Appelez-nous -
41 WR02X24875 Hinge Bushing Bb Appelez-nous -
43 WR02X25634 Cam Closure Black Appelez-nous -
62 WR17X25636 Funnel Ice Appelez-nous -
65 WR17X25056 Paddle Asm Bb Appelez-nous -
66 WR17X25027 Articulating Mullion Asm Dg Appelez-nous -
69 WR17X32216 Tray Drip Black Appelez-nous -
144 WR02X13488 Spring Water Conduit Appelez-nous -
148 WR13X10972 Hinge Top Door Icebox Appelez-nous -
238 WR01X10065 Screw 8-18 Ba Por 5/8 Ss Appelez-nous -
535 WR02X24999 Hinge Bushing Bb Appelez-nous -
557 WR17X25006 Duct Door Asm Appelez-nous -
558 WR60X10344 Motor Duct Door Appelez-nous -
559 WR01X25007 Spring Duct Door Appelez-nous -
561 WR17X24996 Cover Water Tank Appelez-nous -
563 WR57X25054 Water Valve Appelez-nous -
570 WR55X35769 Control Display Asm Black Appelez-nous -
571 WR13X10973 Hinge Bottom Door Icebox Appelez-nous -
572 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 17.15

573 WR14X25057 Switch Paddle Asm Appelez-nous -
574 WR14X25061 Collar Gasket Appelez-nous -
575 WR14X25060 Gasket Port Appelez-nous -
579 WR12X43966 Refrigerator Door Handle - Black Appelez-nous -
580 WR17X25028 Tank Cold Water Appelez-nous -
582 WR71X38293 Middle Dispenser Door Bin Appelez-nous -
583 WR71X38292 Dispenser Door Bin Appelez-nous -
933 WR17X25244 Door Ice Box Asm Appelez-nous -
934 WR55X35530 Board Main Combined Hmi Appelez-nous -
960 WR01X10652 Scr 8-18 Ab Ihw 5/8 S Appelez-nous -
971 WR01X25538 Spring Paddle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

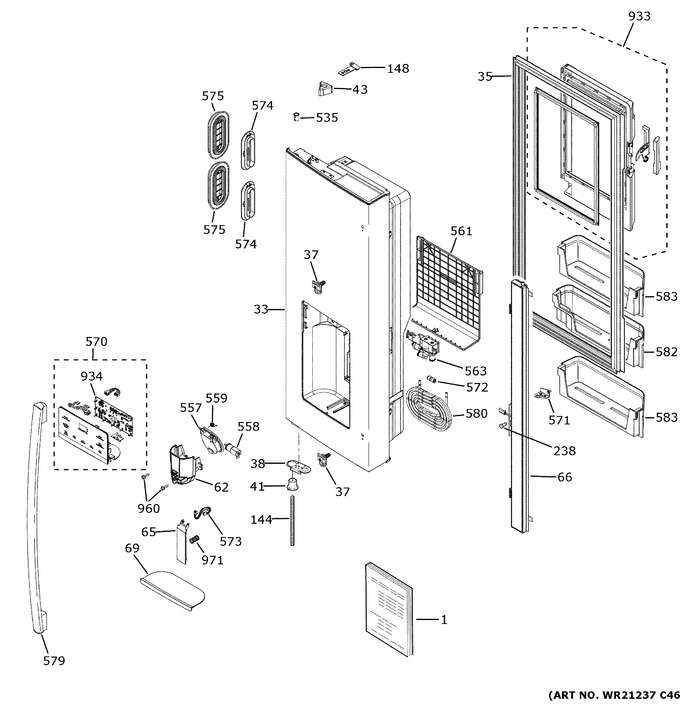

Diagram for GFE26JGMXFBB
