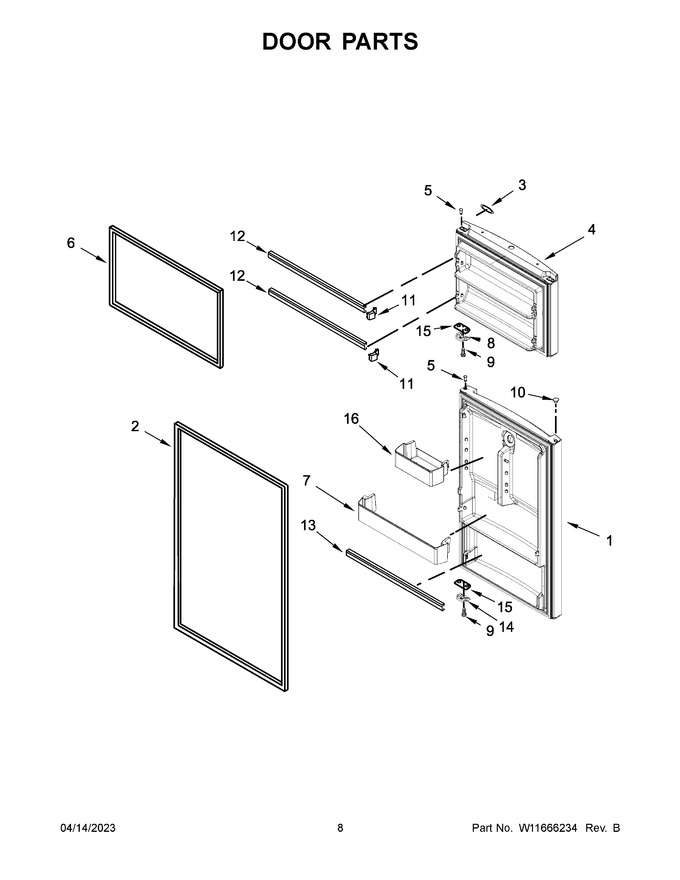

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11645694		Refrigerator Door (includes Illustration 2) (white)   (Replaces: W11634841)				$ 533.62
2	2319266W		Gasket, Door (white)   (Replaces: 2264729)				$ 344.81
3	W11428492		Badge   (Replaces: W11046244)				$ 83.57
4	LW10803976		Freezer Door (includes Illustration 6) (white)   (Replaces: W10803976)				$ 347.94
5	W11759045		Thimble (white)   (Replaces: W10492018)			Immediately	$ 12.34
6	WP2319263W		Gasket, Door (white)   (Replaces: W10840863)			Immediately	$ 265.20
7	W11230940		Trivet   (Replaces: W10805892)				$ 98.68
8	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
9	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
10	WP2212648		Plug, Hole (white)   (Replaces: 2212648)			Immediately	$ 8.19
11	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
12	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 120.57
13	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 122.35
14	W10492012		Bracket, Door Stop				$ 16.85
15	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.55
16	W11190821		Movable, Bin   (Replaces: W10805890)				$ 161.02
10A	WP2212651		Plug, Hole (black)   (Replaces: 2212651)				$ 24.21
1A	W11645693		Refrigerator Door (includes Illustration 2) (black)   (Replaces: W11616141)			Immediately	$ 538.00
2A	2319266B		Gasket, Door (black)   (Replaces: 2264725)				$ 376.51
4A	W11645692		Freezer Door (includes Illustration 6) (black)   (Replaces: W11624190)				$ 363.75
5A	W11189115		Thimble (black)   (Replaces: W10334042)				$ 12.71
6A	WP2319263B		Gasket, Door (black)   (Replaces: W10843447)				$ 268.28
