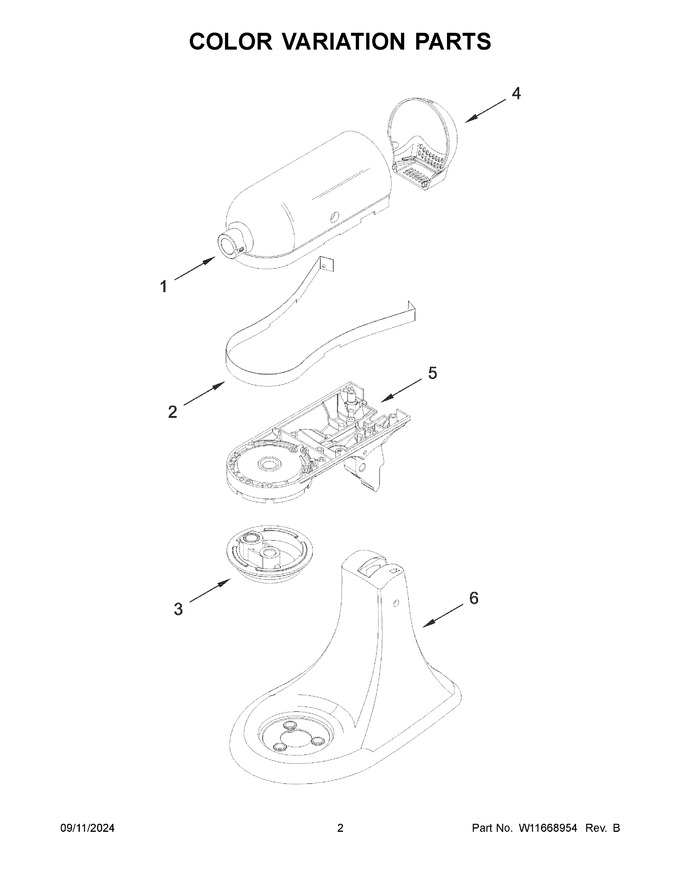

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11601739 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W10348219 | Trim Band (black) |
|
- | |||||
| 3 | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 4 | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 5 | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 6 | W11170300 | Pedestal W/feet (black Matte) (Replaces: W10885695) |
|
- | |||||
| 1A | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1B | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1C | W11603722 | Motor Housing (matte Dried Rose) |
|
- | |||||
| 1D | W11601712 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 1E | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 1F | W11601694 | Motor Housing (silver/silver Tread) |
|
- | |||||
| 3A | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 3B | 24028623 | Planetary (empire Red) |
|
- | |||||
| 3C | W11209496 | Planetary (matte Dried Rose) |
|
- | |||||
| 3D | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 3E | 9706839 | Planetary (pistachio) |
|
- | |||||
| 3F | W10349281 | Planetary (silver/silver Tread) |
|
- | |||||
| 4A | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 4B | 24025322 | End Cover (empire Red) |
|
- | |||||
| 4C | W11209501 | End Cover (matte Dried Rose) |
|
- | |||||
| 4D | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 4E | 9706841 | End Cover (pistachio) |
|
- | |||||
| 4F | W10348293 | End Cover (silver/silver Tread) |
|
- | |||||
| 5A | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5B | 24035084 | Lower Gearcase (empire Red) |
|
- | |||||
| 5C | W11209493 | Lower Gearcase (matte Dried Rose) |
|
- | |||||
| 5D | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 5E | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 5F | W10349276 | Lower Gearcase (silver/silver Tread) |
|
- | |||||
| 6A | W10350457 | Pedestal W/feet (contour Silver) |
|
- | |||||
| 6B | W11131262 | Pedestal W/feet (empire Red) (Replaces: 9702304) |
|
$ 97.71 | |||||
| 6C | W11231606 | Pedestal W/feet (matte Dried Rose) |
|
- | |||||
| 6D | W11444670 | Pedestal W/feet (mineral Water Blue) |
|
- | |||||
| 6E | 9706830 | Pedestal W/feet (pistachio) |
|
- | |||||
| 6F | W10348330 | Pedestal W/feet (silver/silver Tread) |
|
- |
