SELECT A DIAGRAM

01 - Cover Sheet

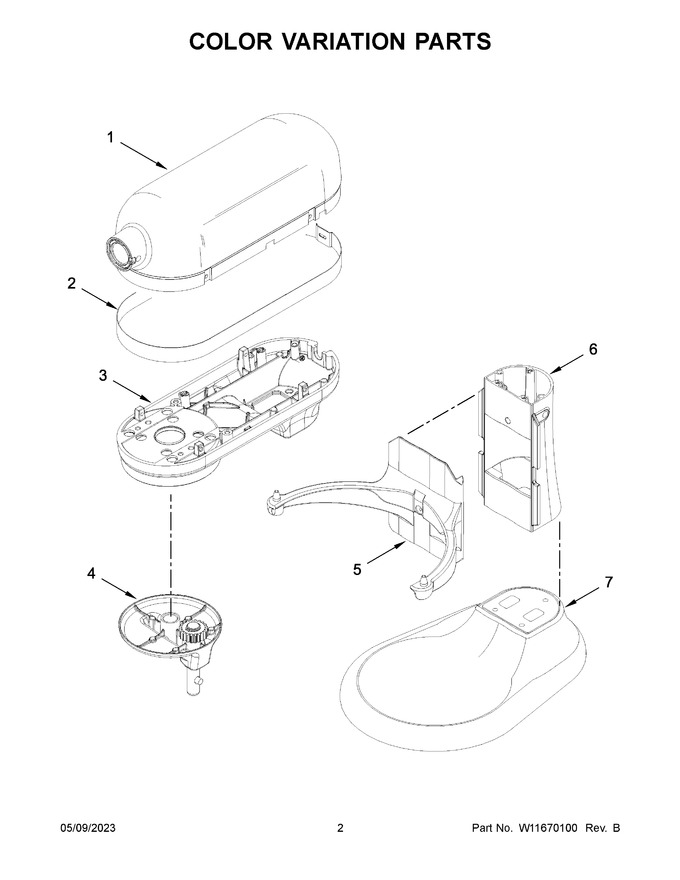

02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10327951		Motor Housing (contour Silver)				$ 71.00
2	W10540366		Trim Band (dark Platinum)				$ 39.40
3	W11630008		Lower Gearcase (contour Silver)		Appelez-nous	-
4	W11589994		Planetary (chrome)			Immediately	$ 103.37
5	W10327966		Bowl Support And Pins (contour Silver)		Appelez-nous	-
6	W10328003		Column And Pins (contour Silver)		Appelez-nous	-
7	W10328017		Base And Foot Assembly (contour Silver)		Appelez-nous	-
1A	9705300		Motor Housing (empire Red)				$ 88.20
1B	9708749		Motor Housing (nickel Pearl)		Appelez-nous	-
1C	9705296		Motor Housing (onyx Black)				$ 88.20
1D	9703311		Motor Housing (white)				$ 88.20
3A	W11589981		Lower Gearcase (empire Red)		Appelez-nous	-
3B	W11589984		Lower Gearcase (nickel Pearl)		Appelez-nous	-
3C	W11589982		Lower Gearcase (onyx Black)		Appelez-nous	-
3D	W11589983		Lower Gearcase (white)		Appelez-nous	-
5A	9705360		Bowl Support And Pins (empire Red)		Appelez-nous	-
5B	9708760		Bowl Support And Pins (nickel Pearl)		Appelez-nous	-
5C	9705356		Bowl Support And Pins (onyx Black)		Appelez-nous	-
5D	9703674		Bowl Support And Pins (white)				$ 74.91
6A	9705324		Column And Pins (empire Red)		Appelez-nous	-
6B	9708763		Column And Pins (nickel Pearl)		Appelez-nous	-
6C	9705320		Column And Pins (onyx Black)		Appelez-nous	-
6D	9703673		Column And Pins (white)				$ 81.26
7A	9705348		Base And Foot Assembly (empire Red)		Appelez-nous	-
7B	9708766		Base & Foot Assembly (nickel Pearl)				$ 81.55
7C	9705344		Base & Foot Assembly (onyx Black)		Appelez-nous	-
7D	9703690		Base & Foot Assembly (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
