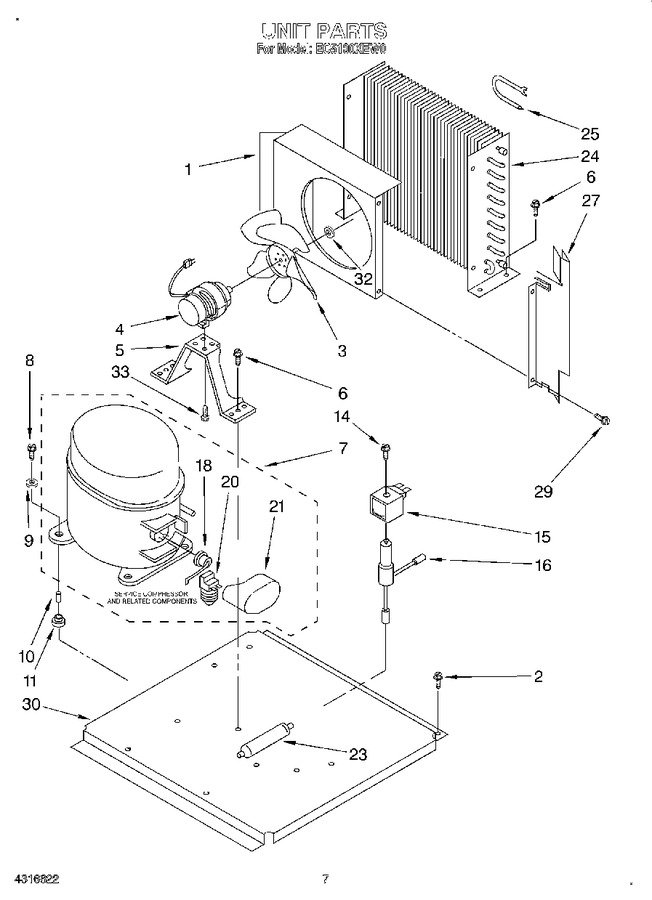

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	757955		Shroud		Appelez-nous	-
2	680811		Screw,		Appelez-nous	-
3	572728		Blade, Fan		Appelez-nous	-
4	1108089		Motor, Fan		Appelez-nous	-
5	560817		Bracket		Appelez-nous	-
6	681305		Screw, 1/4-20 X 1/2 (6)		Appelez-nous	-
7	W10309988		Compressor   (Replaces: 2176659)			Immediately	$ 528.56
8	680233		Screw (4)		Appelez-nous	-
9	595230		Washer (4)		Appelez-nous	-
10	585564		Sleeve (4)		Appelez-nous	-
11	596355		Grommet (4)		Appelez-nous	-
14	489472		Screw		Appelez-nous	-
15	759112		Coil, Solenoid				$ 72.80
16	WP759113		Valve, Body   (Replaces: 759113)				$ 293.73
18	2183404		Overload		Appelez-nous	-
20	2183410		Relay, Start		Appelez-nous	-
21	WP2162358		Cover, Terminal   (Replaces: 2162358)				$ 85.76
23	W10843121		Drier   (Replaces: 2180801)			Immediately	$ 51.42
24	W10139458		Condenser   (Replaces: 2180808)				$ 251.15
25	2180807		Accumulator		Appelez-nous	-
27	758811		Deflector, Front		Appelez-nous	-
29	WP90767		Screw, 8 X 3/8   (Replaces: 681167)			Immediately	$ 7.43
30	2180938		Base, Unit		Appelez-nous	-
32	681650		Conical Washer 1/4-20 Hex		Appelez-nous	-
33	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
33	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
33	978026		Valve, Access (5/16``)			Immediately	$ 121.04
33	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
33	978028		Valve, Access (1/2)		Appelez-nous	-
33	978029		Valve Access (5/8``)				$ 93.85
33	978030		Valve, Access (3/4``)				$ 123.53
33	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
33	489199		Screw		Appelez-nous	-
33	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
33	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 86.78
33	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 218.83
	LIT2180831		Service And Wiring Sheet		Appelez-nous	-
	LIT2180913		Instructions, Installation		Appelez-nous	-
	LIT2180939		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
