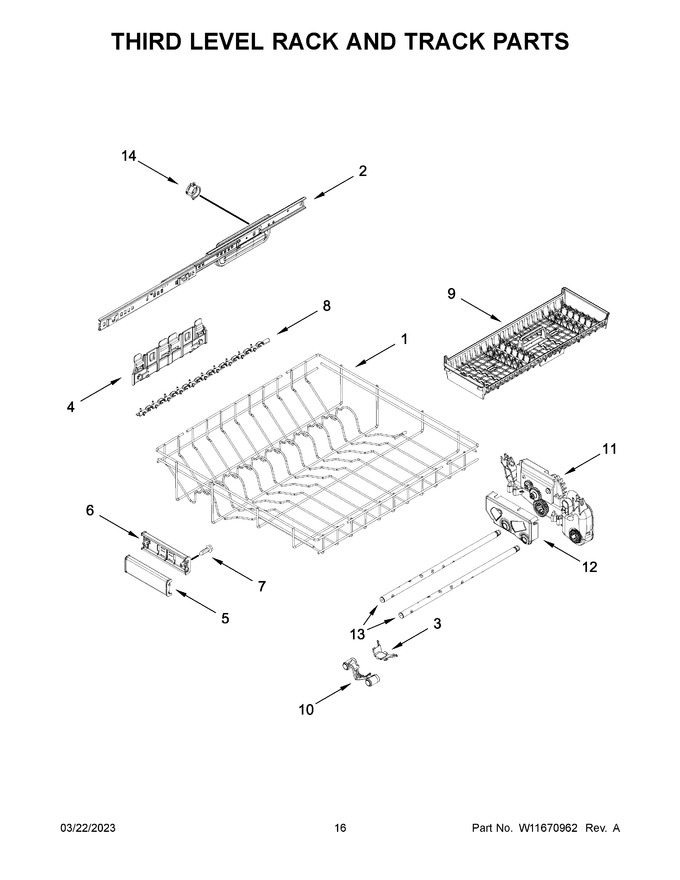

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11800206 | Rack, Third Level (Replaces: W11127727) |
|
Immediately | $ 178.36 | ||||
| 2 | W11047813 | Track Assembly (left Hand) |
|
$ 181.15 | |||||
| 3 | W11573754 | Hanger, Tube (Replaces: W11184071) |
|
Immediately | $ 19.43 | ||||
| 4 | W11130709 | Mount, Dishrack |
|
$ 75.56 | |||||
| 5 | W11392620 | Handle, Dishrack Front |
|
$ 119.47 | |||||
| 6 | W11268681 | Handle, Dishrack Rear |
|
Immediately | $ 116.36 | ||||
| 7 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 8 | W11202101 | Cup Guard |
|
- | |||||
| 9 | W11820595 | Silverware Tray (Replaces: W11087823) |
|
$ 68.12 | |||||
| 10 | W11226505 | Bracket, Front Hanger |
|
- | |||||
| 11 | W11677712 | Drive Box Assembly, Manifold (Replaces: W10830523) |
|
$ 129.50 | |||||
| 12 | W11101860 | Cover, Wash Tube |
|
$ 31.02 | |||||
| 13 | W10830571 | Tube, Wash |
|
$ 236.44 | |||||
| 14 | W11545286 | Nut, Tub (Replaces: W10920244) |
|
Immediately | $ 15.48 | ||||
| 2A | W11047815 | Track Assembly (right Hand) |
|
$ 181.15 |
