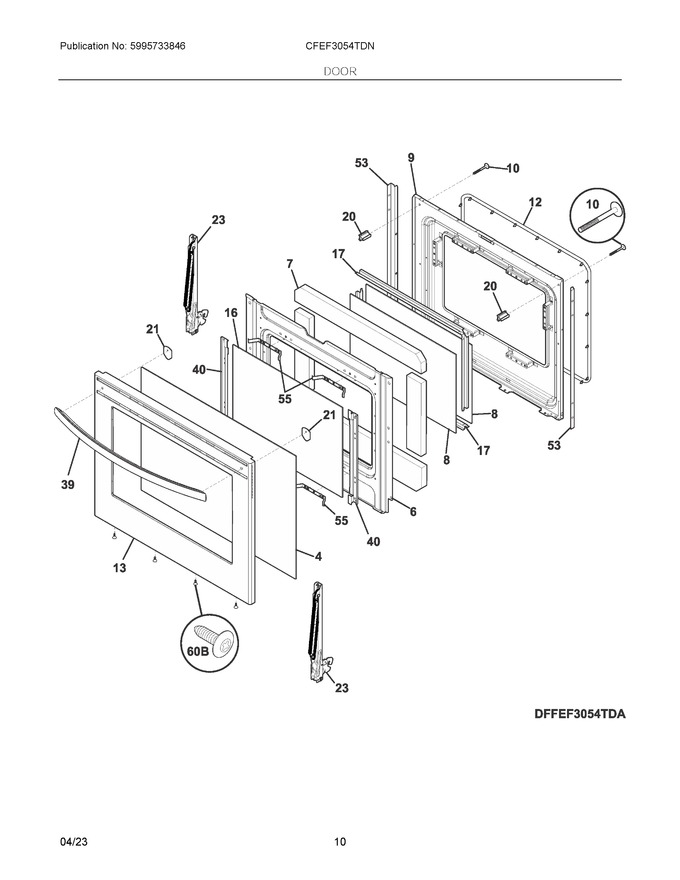

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316452758 | Glass, Oven Door, Black, W/foil |
|
Immediately | $ 237.63 | ||||
| 6 | 316406328 | Shield, Wool |
|
$ 96.90 | |||||
| 7 | 316405600 | Insulation, Oven Door |
|
$ 85.05 | |||||
| 8 | 5304503232 | Glass, Oven Door, Heat Barrier, Inner, Hrc2 (Replaces: 316117502) |
|
$ 129.94 | |||||
| 9 | 316423719 | Liner, Oven Door |
|
$ 170.22 | |||||
| 10 | 316433303 | Screw, Handle Mtg., 10-24 X 1.75", (2) (Replaces: 316439500) |
|
Immediately | $ 34.63 | ||||
| 12 | 5304498835 | Seal, Oven Door (Replaces: 316403101) |
|
Immediately | $ 98.60 | ||||
| 13 | 5304532516 | Panel, Oven Door, Black Stainless, Outer (Replaces: 316603904) |
|
$ 159.25 | |||||
| 16 | 316552801 | Glass, Door, Airwash |
|
$ 42.14 | |||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 27.80 | ||||
| 20 | 316284100 | Spacer, Door Handle, (2) |
|
$ 16.54 | |||||
| 21 | 316533801 | Plate, Distribution, Load |
|
Immediately | $ 6.30 | ||||
| 23 | 316575956 | Hinge, Oven Door, Yellow |
|
Immediately | $ 63.20 | ||||
| 39 | 140067504104 | Handle, Door, Black Stainless, 39 (Replaces: 5304529980) |
|
- | |||||
| 40 | 316552401 | Bracket, Airwash Glass, (2) |
|
$ 32.03 | |||||
| 53 | 5304532042 | Shield, Filler, Black, Side, 39 |
|
$ 28.65 | |||||
| 55 | 316408300 | Bracket, Glass Support, (4) |
|
$ 23.59 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 | |||||
| NI | 5304508804 | Touch Up Paint, Pen, Black Stainless |
|
- | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 |
