01 - Cover Sheet
02 - Color Variation Parts

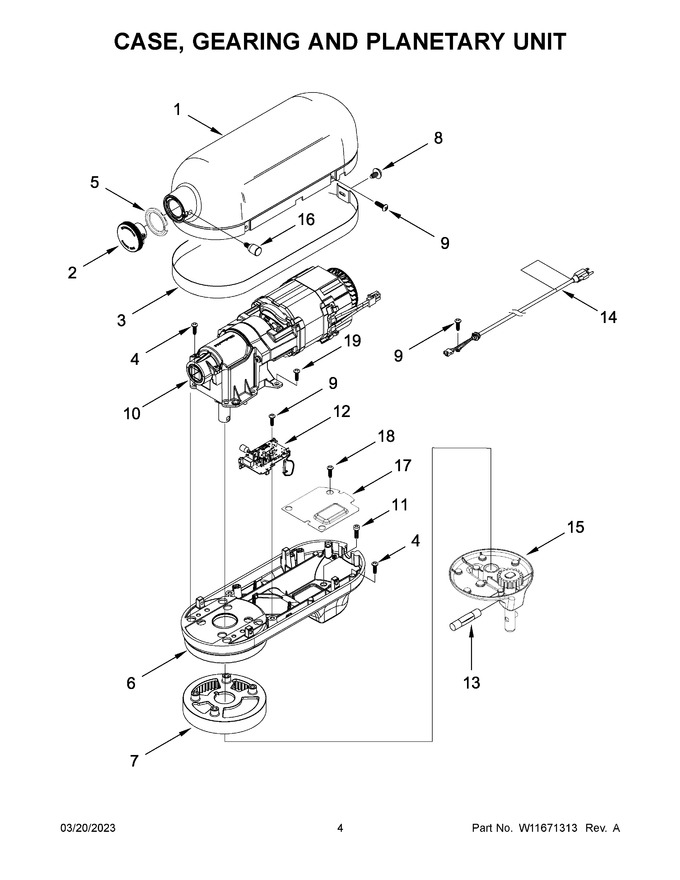

03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | W11677160 | Cap, Attachment Hub (Replaces: W11618094) |
|
- | |||||
| 3 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 4 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 5 | W11123129 | Ring, Attachment Hub (Replaces: 9706141) |
|
$ 19.69 | |||||
| 6 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | W11647948 | Gear, Ring And Plate Assembly (Replaces: W11454895) |
|
- | |||||
| 8 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | W11649201 | Motor, 230 Volt Assembly (Replaces: W11480076) |
|
- | |||||
| 11 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 12 | W11752213 | Control Assembly, 220/230 Volt (Replaces: W11512562) |
|
- | |||||
| 13 | WPW10234531 | Pin, Groove (Replaces: W10234531) |
|
Immediately | $ 5.29 | ||||
| 14 | W11459243 | Cord, Power (black (australia - New Zealand)) |
|
- | |||||
| 15 | NP | Cabinet (not A Serviceable Part) |
|
- | |||||
| 16 | W11521862 | Thumb Screw (satin Chrome) |
|
- | |||||
| 17 | W11560130 | Plate, Lower Housing |
|
- | |||||
| 18 | W11677192 | Screw (Replaces: W10419037) |
|
- | |||||
| 19 | W11677193 | Screw (Replaces: W11457471) |
|
- |
