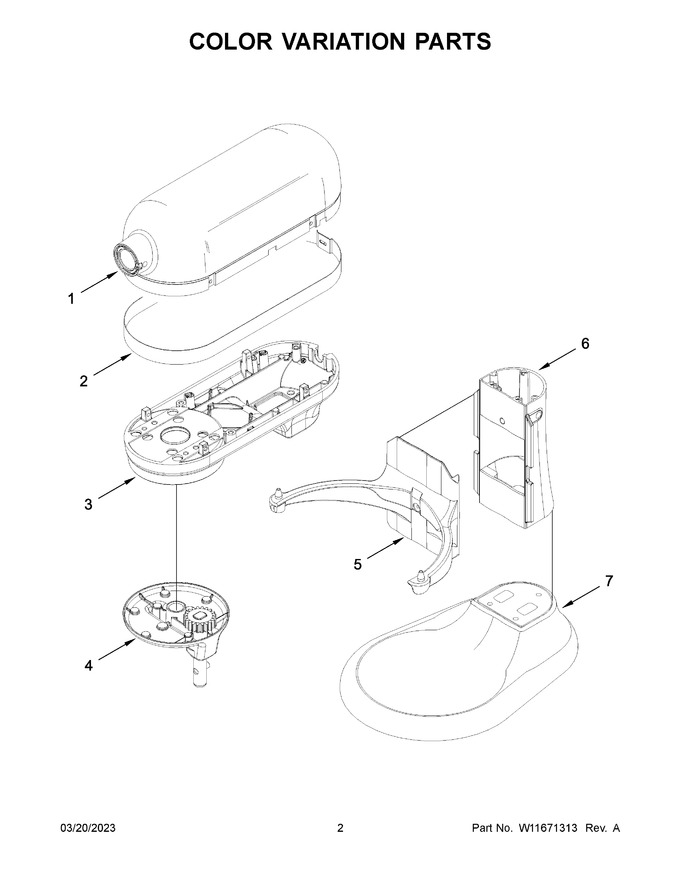

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11123176 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11520136 | Lower Gearcase (black Matte) |
|
- | |||||
| 4 | W11513622 | Planetary (black Matte) |
|
- | |||||
| 5 | W11328664 | Bowl Support And Pins (black Matte) |
|
- | |||||
| 6 | W11123140 | Column And Pins (black Matte) |
|
- | |||||
| 7 | W11123131 | Base And Foot Assembly (black Matte) |
|
- | |||||
| 1A | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 1B | W11236433 | Motor Housing (matte Dried Rose) |
|
- | |||||
| 1C | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1D | W11113746 | Motor Housing (matte Milkshake) |
|
- | |||||
| 1E | 9708090 | Motor Housing (pistachio) |
|
- | |||||
| 3A | W11520143 | Lower Gearcase (contour Silver) |
|
- | |||||
| 3B | W11520139 | Lower Gearcase (matte Dried Rose) |
|
- | |||||
| 3C | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 3D | W11520138 | Lower Gearcase (milkshake) |
|
- | |||||
| 3E | W11520137 | Lower Gearcase (pistachio) |
|
$ 63.69 | |||||
| 4A | W11513269 | Planetary (contour Silver) |
|
$ 75.33 | |||||
| 4B | W11513619 | Planetary (matte Dried Rose) |
|
- | |||||
| 4C | W11513270 | Planetary (empire Red) |
|
$ 77.95 | |||||
| 4D | W11513620 | Planetary (milkshake) |
|
- | |||||
| 4E | W11513621 | Planetary (pistachio) |
|
- | |||||
| 5A | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 5B | W11438574 | Bowl Support And Pins (matte Dried Rose) |
|
- | |||||
| 5C | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5D | W11113728 | Bowl Support And Pins (milkshake) |
|
- | |||||
| 5E | W11417635 | Bowl Support And Pins (pistachio) |
|
- | |||||
| 6A | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 6B | W11234594 | Column And Pins (matte Dried Rose) |
|
- | |||||
| 6C | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6D | W11113727 | Column And Pins (milkshake) |
|
- | |||||
| 6E | 9708104 | Column And Pins (pistachio) |
|
- | |||||
| 7A | W10328017 | Base And Foot Assembly (contour Silver) |
|
- | |||||
| 7B | W11236428 | Base And Foot Assembly (matte Dried Rose) |
|
- | |||||
| 7C | 9705348 | Base And Foot Assembly (empire Red) |
|
- | |||||
| 7D | W11113722 | Base And Foot Assembly (milkshake) |
|
- | |||||
| 7E | 9708107 | Base And Foot Assembly (pistachio) |
|
- |
