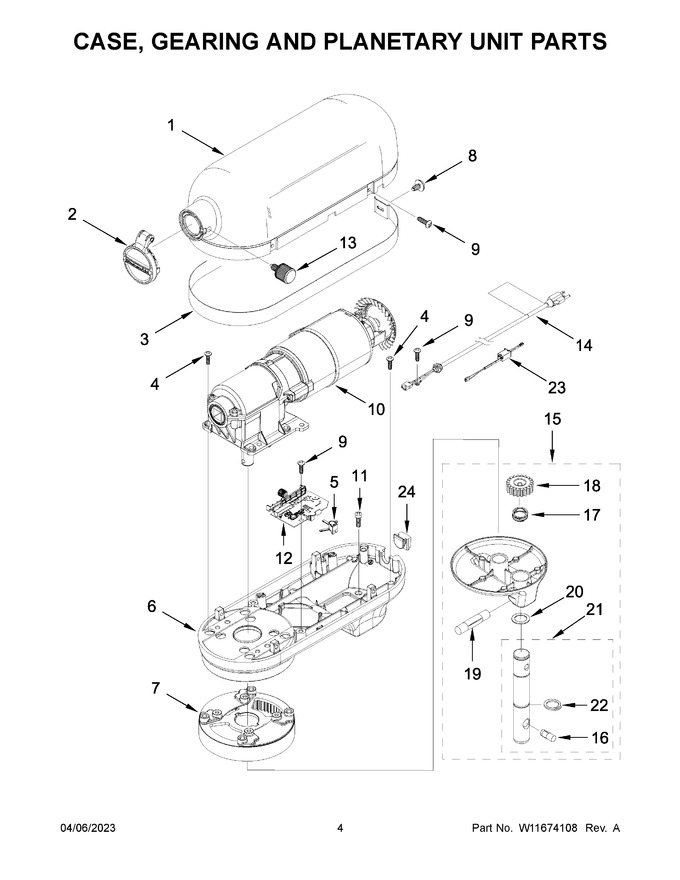

03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WPW10395280		Cap, Attachment Hub (satin Chrome)   (Replaces: W10395280)				$ 30.44
3	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	W10914506		Screw   (Replaces: W10351843)				$ 4.59
5	WPW10305968		Holder, Control   (Replaces: W10305968)				$ 4.33
6	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	W11672011		Assembly, Ring Gear And Plate   (Replaces: W11518734)		Appelez-nous	-
8	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
9	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
10	W11097334		Motor, 230 Volt Assembly   (Replaces: W10517939)				$ 212.62
11	W10913677		Screw   (Replaces: 3400200)				$ 4.64
12	W11188058		Control, 230 Volt   (Replaces: W11178567)				$ 200.64
13	WPW10360791		Thumb Screw (black)   (Replaces: W10360791)				$ 10.68
14	W11392625		Cord, Power (black (united Kingdom))		Appelez-nous	-
15	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
16	W11664709		Pin, Groove   (Replaces: W11533778)			Immediately	$ 6.75
17	W11649170		Spring, Wave   (Replaces: W11537260)		Appelez-nous	-
18	W11647950		Gear, Pinion   (Replaces: W11553110)		Appelez-nous	-
19	WPW10234531		Pin, Groove   (Replaces: W10234531)			Immediately	$ 5.29
20	W10854966		Washer   (Replaces: 8533910)				$ 4.94
21	W11647951		Shaft, Agitator   (Replaces: W11531546)		Appelez-nous	-
22	WP9703680		Clip, Retaining   (Replaces: 9703680)			Immediately	$ 4.99
23	W11678212		Rfi Filter (korea/brazil)   (Replaces: W10703127)		Appelez-nous	-
24	W10417201		Clip, Plug		Appelez-nous	-
