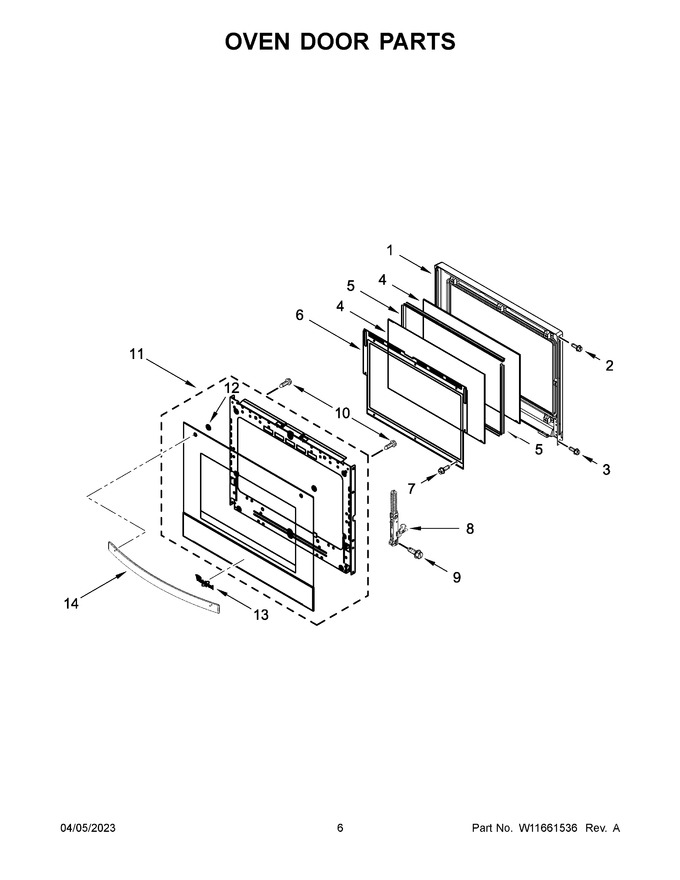

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11768649 | Liner Assembly (Replaces: W11302587) |
|
Immediately | $ 303.81 | ||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 14.77 | |||||
| 4 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 247.71 | |||||
| 5 | W11736671 | Spacer, Air Divider (Replaces: W11302730) |
|
Immediately | $ 72.09 | ||||
| 6 | W11598182 | Retainer, Air Divider Glass (Replaces: W11174095) |
|
Immediately | $ 81.53 | ||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11598229 | Hinge, Door (left) (Replaces: W11394143) |
|
$ 86.14 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 14.75 | ||||
| 11 | W11654062 | Outer Door Assembly (black) (Replaces: W11499217) |
|
$ 673.09 | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 13 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 14 | W11648760 | Handle, Door (black) (Replaces: W11532518) |
|
$ 99.41 | |||||
| 11A | W11654064 | Outer Door Assembly (white) (Replaces: W11499219) |
|
$ 504.07 | |||||
| 11B | W11654056 | Outer Door Assembly (stainless) (Replaces: W11499218) |
|
Immediately | $ 669.45 | ||||
| 14A | W11675407 | Handle, Door (white) (Replaces: W11660149) |
|
$ 98.24 | |||||
| 14B | W11648756 | Handle Assembly (stainless) (Replaces: W11532517) |
|
Immediately | $ 104.94 | ||||
| 8A | W11598230 | Hinge, Door (right) (Replaces: W11394144) |
|
$ 89.66 |
