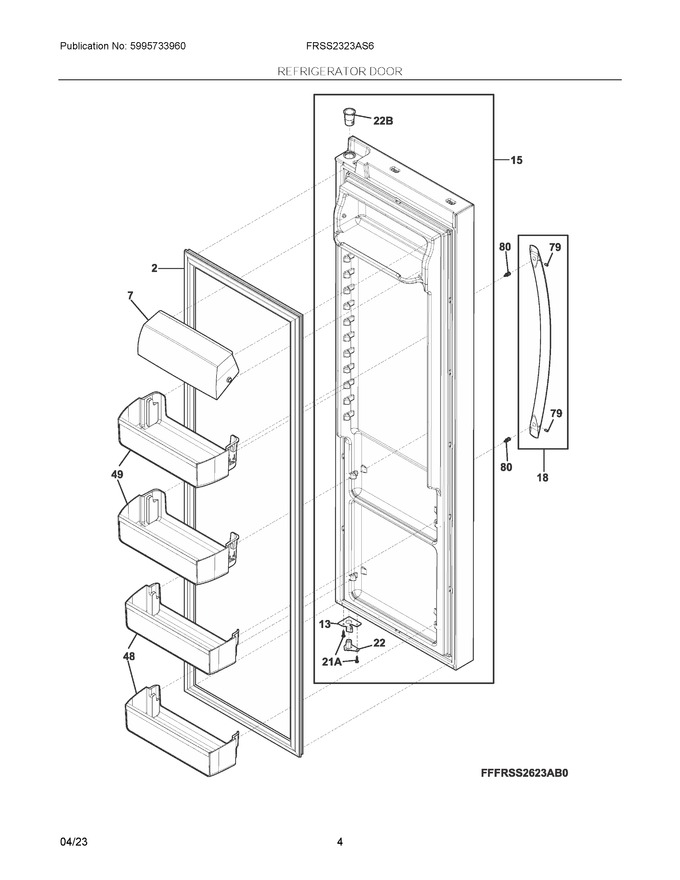

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786015 | Gasket-refr Door, Grey, Magnetic (Replaces: 241786011) |
|
Immediately | $ 105.18 | ||||
| 7 | 5304526901 | Cover, Compartment, Dairy |
|
Immediately | $ 118.70 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 16.85 | |||||
| 15 | 5304527281 | Door Assembly, Fresh Food, Stainless, Complete |
|
$ 776.19 | |||||
| 18 | 5304511770 | Handle, Door, Stainless, W/set Screws |
|
Immediately | $ 254.48 | ||||
| 22 | 5303918892 | Bushing, Door Closer, Black (Replaces: 5304525924) |
|
$ 33.42 | |||||
| 26 | 241690602 | Screw, Cr Pan Hd, 10-16 X 0.500 (Replaces: 215503205) |
|
$ 11.81 | |||||
| 42 | 5308000039 | Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head |
|
- | |||||
| 43 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.88 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 48 | 5304536369 | Bin Assembly, 2 Liter, Ff Door (Replaces: 5304527144) |
|
Immediately | $ 42.95 | ||||
| 49 | 5304536370 | Bin Assembly, Gallon, Ff Door (Replaces: 5304527143) |
|
Immediately | $ 50.77 | ||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 17.33 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 21.26 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.73 |
