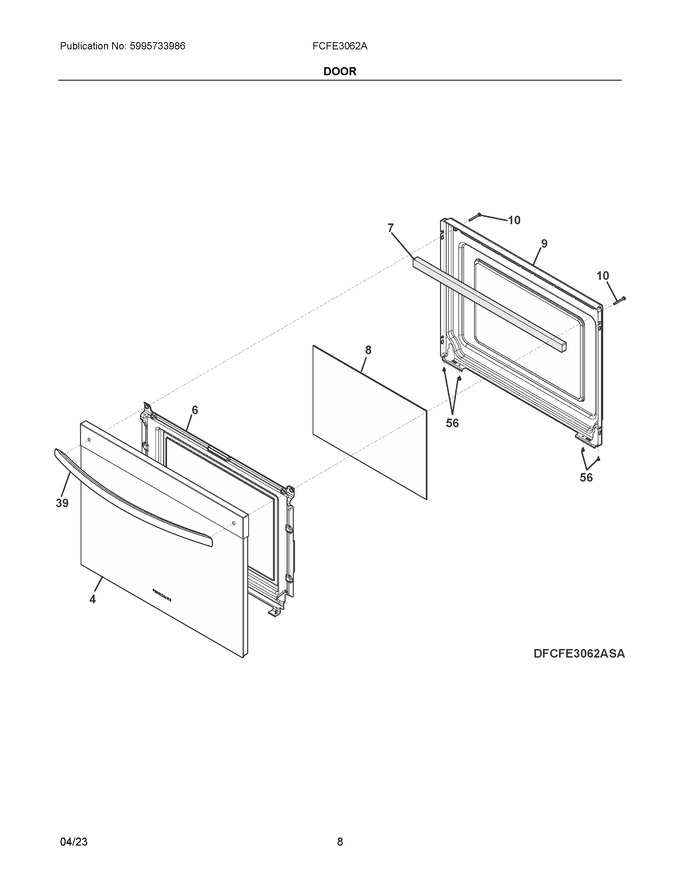

05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304528486 | Door Assembly, Outer, Glass/steel, White |
|
$ 200.22 | |||||
| 6 | 5304526283 | Shield, Wool |
|
Immediately | $ 120.86 | ||||
| 7 | 140299178057 | Insulation, Door Top (Replaces: 5304526657) |
|
- | |||||
| 8 | 140163079118 | Glass, Door, Inner, Hbii (Replaces: 5304526388) |
|
$ 59.41 | |||||
| 9 | 5304533466 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 130.38 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-14 X 2.100, Black, Handle Mtg. (Replaces: 316433306) |
|
Immediately | $ 2.53 | ||||
| 39 | 5304522047 | Handle, Door, White |
|
Immediately | $ 136.25 | ||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.37 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
