01 - Cover Sheet

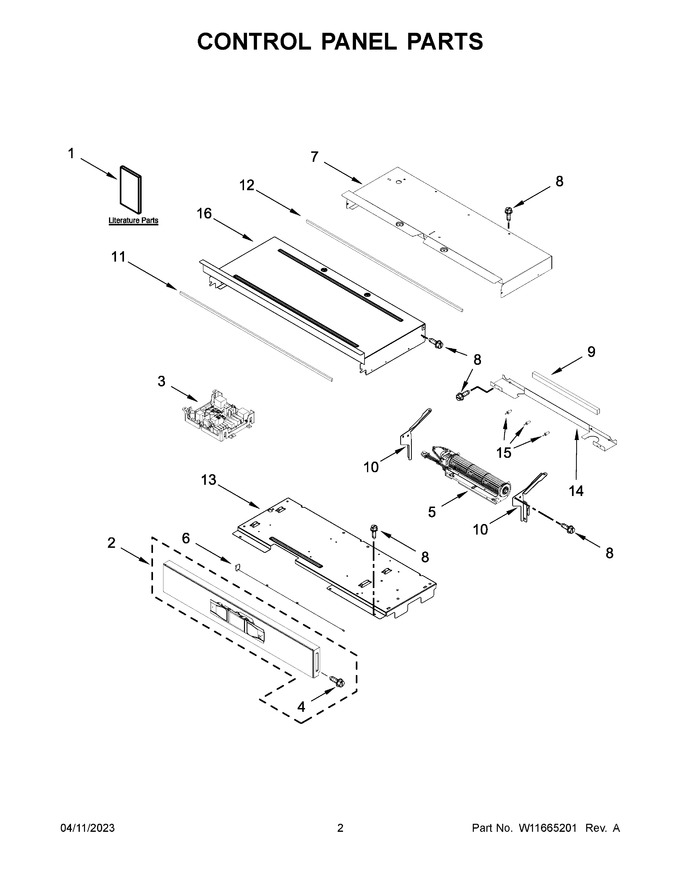

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555306 | Owner's Manual |
|
- | |||||
| 2 | W11659267 | Assembly, Control Panel (includes Overlay) (black) (used In Black And Stainless Models) (Replaces: W11467970) |
|
$ 881.70 | |||||
| 3 | W11649350 | Control, Copernicus (Replaces: W11585754) |
|
Immediately | $ 283.10 | ||||
| 4 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 5 | W11598119 | Blower (Replaces: W11397930) |
|
Immediately | $ 388.25 | ||||
| 6 | W11537624 | Antenna (Replaces: W11409842) |
|
$ 106.06 | |||||
| 7 | W11244459 | Cover, Top Back 27 In Chassis |
|
- | |||||
| 8 | 7101P42660 | Screw |
|
- | |||||
| 9 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W11226313 | Gasket, Rubber (652 Mm) (Replaces: W11162062) |
|
$ 24.40 | |||||
| 12 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 13 | W11179509 | Tray, Electronic |
|
- | |||||
| 14 | W11166802 | Divider, Chassis Back |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 22.12 | |||||
| 16 | W11244469 | Cover, Top Front 27 In Chassis |
|
- | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11553919 | Quick Start Guide |
|
- | |||||
| 1B | W11601391 | Tech Sheet |
|
- | |||||
| 2A | W11659268 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W11568107) |
|
- | |||||
| 3A | W11649361 | Control, Copernicus (without Power Supply) (Replaces: W11585756) |
|
$ 331.68 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11727826 | Harness, Door Latch (Replaces: W11264646) |
|
$ 61.80 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11245677 | Harness, Signal |
|
- | |||||
| NI | W11602626 | Bag, Hardware (Replaces: W11394923) |
|
$ 23.47 | |||||
| NI | W11464640 | Harness, Main |
|
- | |||||
| NI | W11132988 | Strap, Lead Ground |
|
- | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 |
