01 - Cover Sheet

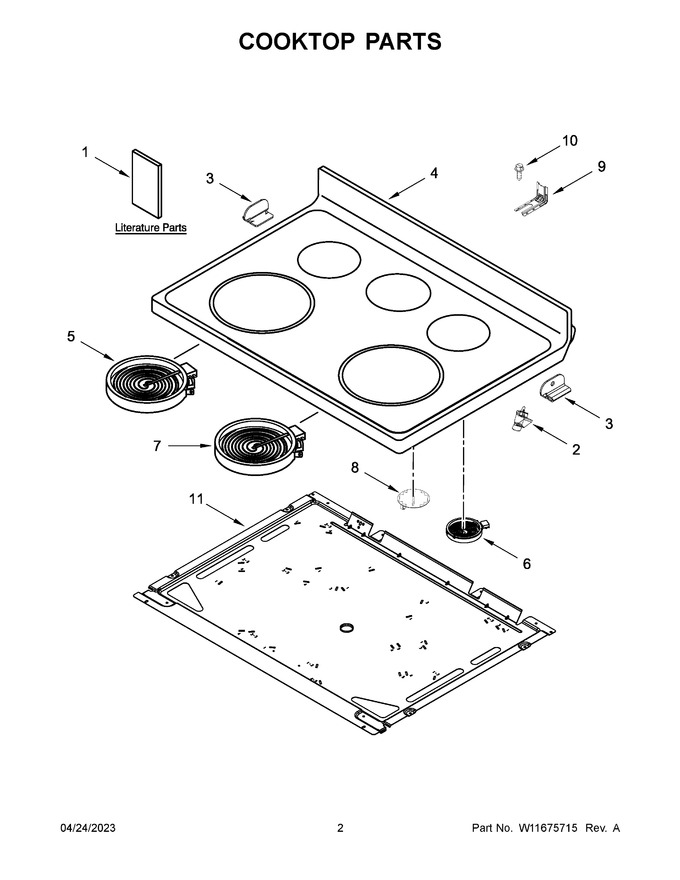

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11637853 | Owners Manual |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 4 | W11091927 | Cooktop (black) (Replaces: W11022824) |
|
$ 849.52 | |||||
| 5 | W11517959 | Element (3000 And 1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | W11047722 | Element (2500w) (right Front) (Replaces: W10248262) |
|
Immediately | $ 132.46 | ||||
| 8 | W11041453 | Element, Warm Zone (center) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 1A | W11637854 | Quick Start Guide |
|
- | |||||
| 1B | W11390998 | Tech Sheet |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | NP | Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| NI | W11598759 | Harness, Warm Zone |
|
- | |||||
| NI | W11750757 | Harness, Main (Replaces: W11452624) |
|
- | |||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
$ 39.67 | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 |
