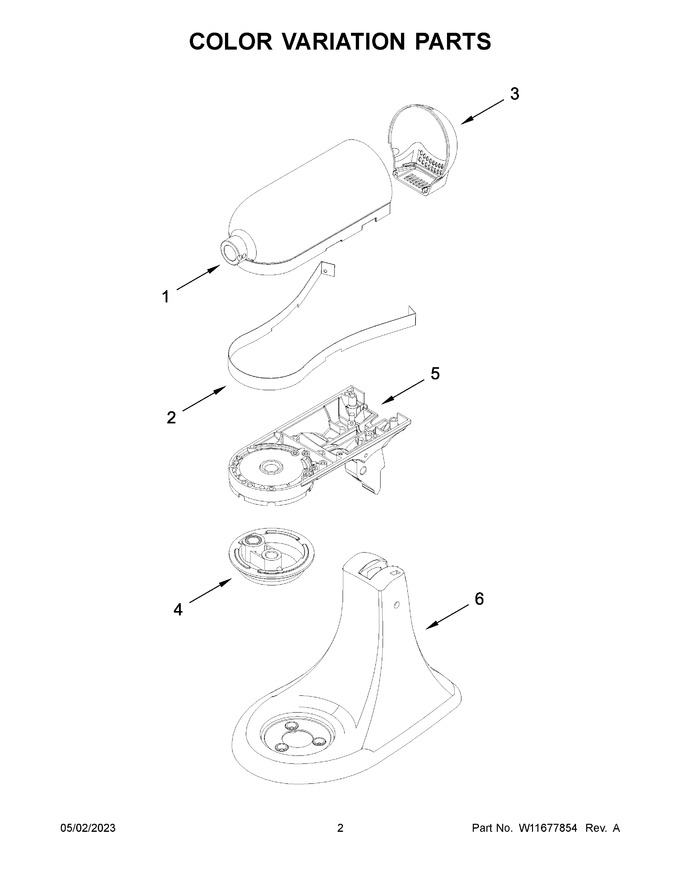

01 - Cover Sheet
02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11610358 | Motor Housing (feather Pink) |
|
- | |||||
| 2 | W11433195 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11431666 | End Cover (feather Pink) |
|
- | |||||
| 4 | W11431675 | Planetary (feather Pink) |
|
- | |||||
| 5 | W11431679 | Lower Gearcase (feather Pink) |
|
- | |||||
| 6 | W11444650 | Pedestal (feather Pink) |
|
- | |||||
| 1A | W11604411 | Motor Housing (medallion Silver) |
|
- | |||||
| 3A | WPW10435298 | End Cover (medallion Silver) (Replaces: W10435298) |
|
$ 32.04 | |||||
| 4A | WPW10444039 | Planetary (medallion Silver) (Replaces: W10444039) |
|
$ 36.24 | |||||
| 5A | WPW10444068 | Lower Gearcase (medallion Silver) (Replaces: W10444068) |
|
$ 119.46 | |||||
| 6A | W11036962 | Pedestal (medallion Silver) |
|
- |
