SELECT A DIAGRAM
01 - Cover Sheet
02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts

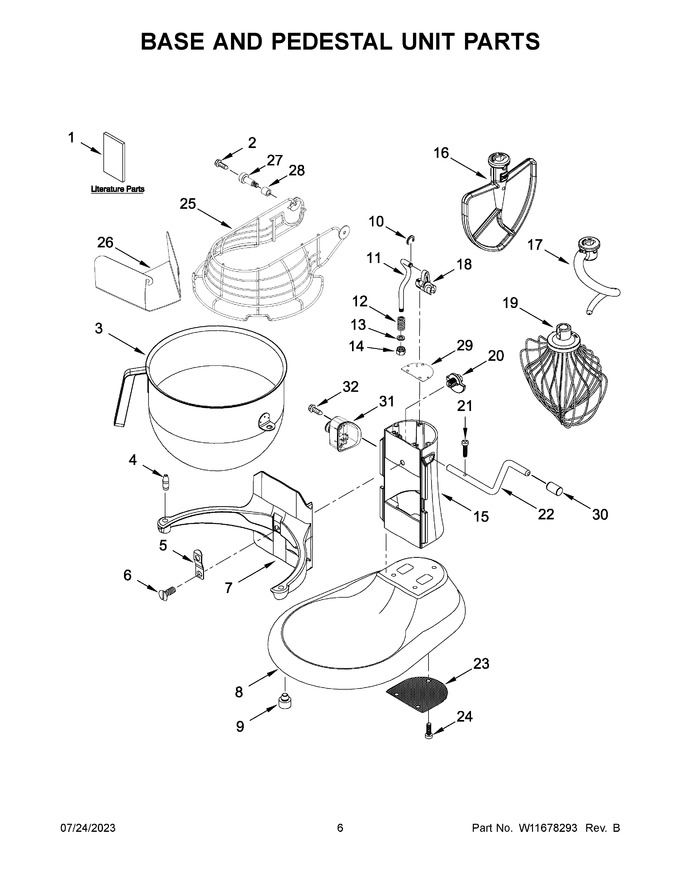

04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10712126 | Use & Care Guide |
|
- | |||||
| 2 | W10802060 | Screw (Replaces: W10572158) |
|
$ 5.21 | |||||
| 3 | WPW10508588 | Bowl, 8 Quart (Replaces: W10508588) |
|
$ 165.38 | |||||
| 4 | WP240185 | Pin, Retaining Bowl (Replaces: 240185) |
|
$ 4.50 | |||||
| 5 | WPW10504114 | Clip, Bowl Retainer (Replaces: W10504114) |
|
Immediately | $ 5.14 | ||||
| 6 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 7 | ARI076B01BEA270342FDB92AA0E5FF08C8B | Bowl Support And Pins (refer To Color Variation Parts Page) |
|
- | |||||
| 8 | ARIE3AF1D82A6A4B7D31EBF980CFE7ECCF0 | Base And Foot Assembly (refer To Color Variation Parts Page) |
|
- | |||||
| 9 | WP9708649 | Foot (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 10 | WP9703307 | Ring, Retaining (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 11 | W11775238 | Rod, Bowl Lift (Replaces: W11376364) |
|
$ 5.73 | |||||
| 12 | 4159622 | Spring, Lift Rod (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 13 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 14 | 8533907 | Nut |
|
$ 24.83 | |||||
| 15 | ARI7F9307B0DB26E620901A15CA7C80E553 | Column And Pins (refer To Color Variation Parts Page) |
|
- | |||||
| 16 | W11458649 | Beater, Flat (stainless) (Replaces: W10720793) |
|
$ 86.22 | |||||
| 17 | W11397072 | Hook, Dough (stainless) (Replaces: W10720794) |
|
$ 75.82 | |||||
| 18 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 19 | WPW10600940 | Whip, Wire (Replaces: W10600940) |
|
$ 124.95 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 4.62 | |||||
| 22 | W11778321 | Handle, Bowl Lift (Replaces: W11376371) |
|
$ 24.01 | |||||
| 23 | 9706814 | Screen, Vent |
|
- | |||||
| 24 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 25 | W11029491 | Guard, Bowl (Replaces: W10622342) |
|
$ 115.97 | |||||
| 26 | W10600050 | Chute, Pouring |
|
$ 103.74 | |||||
| 27 | W11676535 | Pin, Guard (Replaces: W10308293) |
|
$ 20.70 | |||||
| 28 | W11676536 | Sleeve, Guard (Replaces: W10445096) |
|
$ 9.86 | |||||
| 29 | W10512243 | Gasket, Column |
|
- | |||||
| 30 | W11379274 | Cap, Handle (Replaces: W10391115) |
|
- | |||||
| 31 | W11651610 | Module, Stop (Replaces: W10461707) |
|
- | |||||
| 32 | W10426374 | Screw |
|
- |
