01 - Cover Sheet

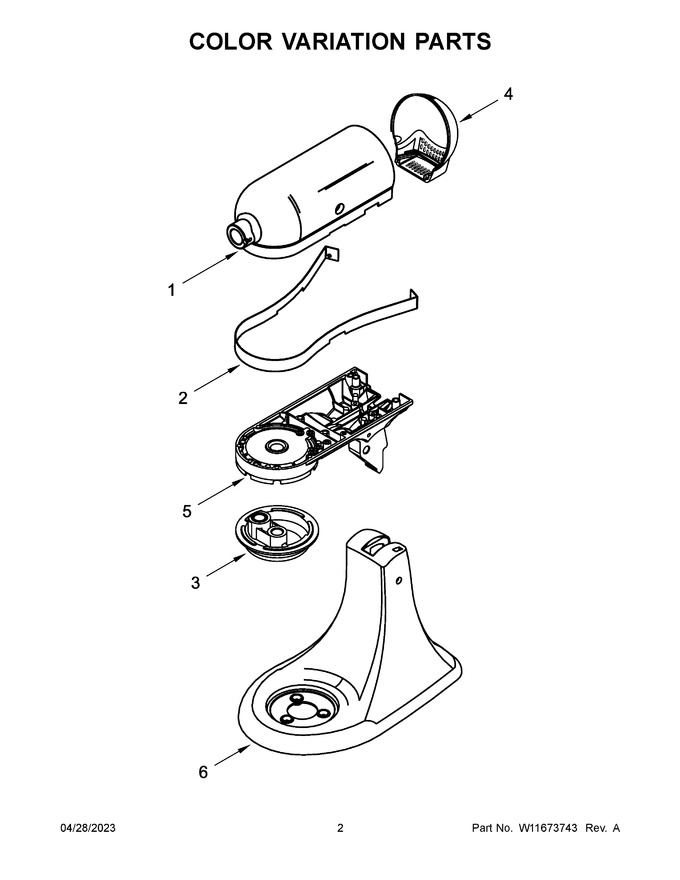

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Motor And Control Unit Parts
05 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350463 | Motor Housing (contour Silver) |
|
- | |||||
| 2 | W11230105 | Trim Band (black/frost) (Replaces: W10431041) |
|
- | |||||
| 3 | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4 | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 5 | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 6 | W10482478 | Pedestal (contour Silver) |
|
- |
