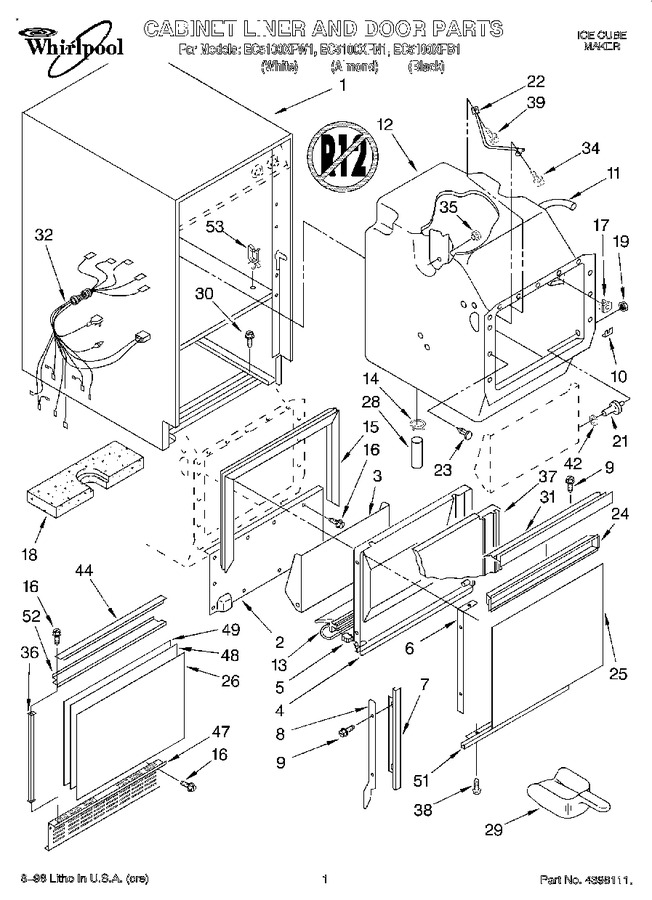

01 - Cabinet Liner And Door


02 - Evaporator, Ice Cutter Grid And Water


03 - Pump


04 - Escutcheon And Control Components


05 - Unit, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175636		Shell (white)		Appelez-nous	-
1	2175696		Shell (black)		Appelez-nous	-
1	2175698		Shell (almond)		Appelez-nous	-
2	2175619		Front, Shell		Appelez-nous	-
3	756330		Door, Inner Bin		Appelez-nous	-
4	758655		Liner, Door		Appelez-nous	-
5	593192		Plug, Hinge		Appelez-nous	-
6	593104		Strip, Tapping (2)		Appelez-nous	-
7	2181113		Trim, Door (2) (white)		Appelez-nous	-
7	2181115		Trim, Door (2) (almond)		Appelez-nous	-
7	2181114		Trim, Door (2) (black)		Appelez-nous	-
8	593185		Rail, L.s.		Appelez-nous	-
8	593184		Rail, R.s.		Appelez-nous	-
9	681459		Screw, 8-32 X 5/8 (6)		Appelez-nous	-
10	758492		Washer (2)		Appelez-nous	-
11	759213		Tube, Water Fill		Appelez-nous	-
12	758990		Liner (includes Illus. 17, 18, 19, 20 & 21)		Appelez-nous	-
13	555555		Gasket, Bottom   (Replaces: 2172898)				$ 168.82
14	596023		Clamp (2)		Appelez-nous	-
15	758921		Gasket		Appelez-nous	-
16	WP488729		Screw, No.8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
17	596807		Grommet		Appelez-nous	-
18	756891		Insulation, Bottom, Foam		Appelez-nous	-
19	681542		Nut		Appelez-nous	-
21	758220		Stud (2)		Appelez-nous	-
22	593183		Well, Bin Thermostat		Appelez-nous	-
23	596812		Clip, Panel (12)		Appelez-nous	-
24	2181118		Pocket, Handle (black)		Appelez-nous	-
24	2181117		Pocket, Handle (white)		Appelez-nous	-
24	2181119		Pocket, Handle (almond)		Appelez-nous	-
25	758746		Panel, Exterior (white & Black)		Appelez-nous	-
25	758745		Panel, Exterior (almond/h. Gold)		Appelez-nous	-
26	758720		Panel, Outer		Appelez-nous	-
28	593577		Connector, Hose		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	680811		Screw, 10-32 X 3/8		Appelez-nous	-
31	2175685		Handle, Recessed (black)		Appelez-nous	-
31	2175668		Handle, Recessed (white)		Appelez-nous	-
31	2180790		Handle, Recessed (almond)		Appelez-nous	-
32	2181157		Harness, Cabinet		Appelez-nous	-
34	680930		Thumbscrew, 10-1/2		Appelez-nous	-
35	596715		Well Nut (3)		Appelez-nous	-
36	2181104		Trim, Side (2) (almond)		Appelez-nous	-
36	2181103		Trim, Side (2) (black)		Appelez-nous	-
36	2181102		Trim, Side (2) (white)		Appelez-nous	-
37	758608		Insulation, Door		Appelez-nous	-
38	681196		Screw		Appelez-nous	-
39	681419		Thumbscrew		Appelez-nous	-
42	681613		Washer		Appelez-nous	-
44	2181106		Trim, Top And Bottom (black)		Appelez-nous	-
44	2181107		Trim, Top And Bottom (almond)		Appelez-nous	-
44	2181105		Trim, Top And Bottom (white)		Appelez-nous	-
47	758769		Grille, Front (black)		Appelez-nous	-
47	759132		Grille, Front (white)		Appelez-nous	-
47	2180778		Grille, Front (almond)		Appelez-nous	-
48	2190138		Panel, Filler		Appelez-nous	-
49	758771		Panel, Inner		Appelez-nous	-
51	2181110		Trim, Door (lower) (black)		Appelez-nous	-
51	2181109		Trim, Door (lower) (white)		Appelez-nous	-
51	2181111		Trim, Door (lower) (almond)		Appelez-nous	-
52	2175604		Support, Front		Appelez-nous	-
53	489482		Retainer, Wire		Appelez-nous	-
