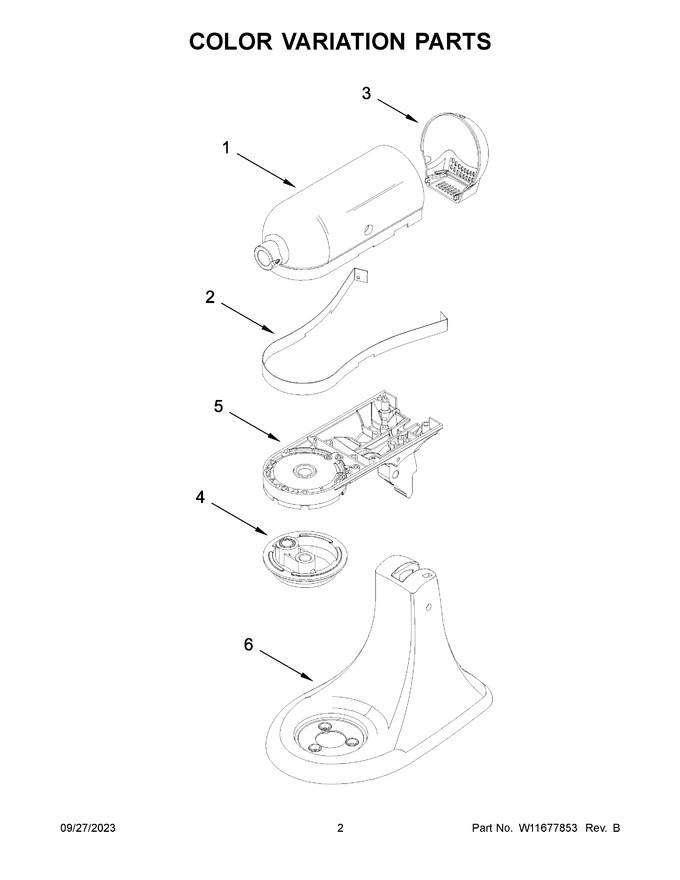

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11618226 | Motor Housing (agave) |
|
- | |||||
| 2 | W11562236 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11579591 | End Cover (agave) |
|
- | |||||
| 4 | W11579603 | Planetary (agave) |
|
- | |||||
| 5 | W11579600 | Lower Gearcase (agave) |
|
- | |||||
| 6 | W11579599 | Pedestal (agave) |
|
- | |||||
| 1A | W11601739 | Motor Housing (black Matte) |
|
- | |||||
| 1B | W11604098 | Motor Housing (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 1C | W11604104 | Motor Housing (cast Iron/imperial Black) |
|
- | |||||
| 1D | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1E | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1F | W11684973 | Motor Housing (juniper) |
|
- | |||||
| 1G | W11603722 | Motor Housing (matte Dried Rose) |
|
- | |||||
| 1H | W11601726 | Motor Housing (metallic Chrome) |
|
- | |||||
| 1I | W11603707 | Motor Housing (milkshake/matte Milkshake) |
|
- | |||||
| 1J | W11601712 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 1K | W11601672 | Motor Housing (onyx Black) |
|
$ 90.25 | |||||
| 1L | W11610730 | Motor Housing (passion/signature Red) |
|
- | |||||
| 1M | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 1N | W11647800 | Motor Housing (porcelain) |
|
- | |||||
| 1O | W11610718 | Motor Housing (silver/silver Tread) |
|
- | |||||
| 1P | W11601255 | Motor Housing (white) |
|
- | |||||
| 3A | W11170239 | End Cover (black Matte) (Replaces: W10885707) |
|
- | |||||
| 3B | W11209472 | End Cover (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 3C | 9704805 | End Cover (cast Iron/imperial Black) |
|
- | |||||
| 3D | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3E | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3F | W11684795 | End Cover (juniper) |
|
- | |||||
| 3G | W11209501 | End Cover (matte Dried Rose) |
|
- | |||||
| 3H | 9704029 | End Cover (metallic Chrome) |
|
- | |||||
| 3I | W11113835 | End Cover (milkshake/matte Milkshake) |
|
- | |||||
| 3J | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 3K | 24025314 | End Cover (onyx Black) |
|
- | |||||
| 3L | W11298415 | End Cover (passion/signature Red) |
|
- | |||||
| 3M | 9706841 | End Cover (pistachio) |
|
- | |||||
| 3N | W11647082 | End Cover (porcelain) |
|
$ 40.17 | |||||
| 3O | W10348293 | End Cover (silver/silver Tread) |
|
- | |||||
| 3P | 2402531 | End Cover (white) |
|
- | |||||
| 4A | W11170306 | Planetary (black Matte) (Replaces: W10885706) |
|
$ 26.56 | |||||
| 4B | W11209470 | Planetary (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 4C | 9704797 | Planetary (cast Iron/imperial Black) |
|
- | |||||
| 4D | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4E | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4F | W11684977 | Planetary (juniper) |
|
- | |||||
| 4G | W11209496 | Planetary (matte Dried Rose) |
|
- | |||||
| 4H | 9706670 | Planetary (metallic Chrome) |
|
Immediately | $ 45.31 | ||||
| 4I | W11113886 | Planetary (milkshake/matte Milkshake) |
|
- | |||||
| 4J | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 4K | 24028616 | Planetary (onyx Black) |
|
- | |||||
| 4L | W11298422 | Planetary (passion/signature Red) |
|
- | |||||
| 4M | 9706839 | Planetary (pistachio) |
|
- | |||||
| 4N | W11647804 | Planetary (porcelain) |
|
- | |||||
| 4O | W10349281 | Planetary (silver/silver Tread) |
|
- | |||||
| 4P | 2402861 | Planetary (white) |
|
- | |||||
| 5A | W11170233 | Lower Gearcase (black Matte) (Replaces: W10885699) |
|
- | |||||
| 5B | W11209465 | Lower Gearcase (blue Velvet/matte Vintage Blue) |
|
- | |||||
| 5C | 9707103 | Lower Gearcase (cast Iron/imperial Black) |
|
- | |||||
| 5D | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5E | 24035084 | Lower Gearcase (empire Red) |
|
- | |||||
| 5F | W11684969 | Lower Gearcase (juniper) |
|
- | |||||
| 5G | W11209493 | Lower Gearcase (matte Dried Rose) |
|
- | |||||
| 5H | 9706662 | Lower Gearcase (metallic Chrome) |
|
$ 68.93 | |||||
| 5I | W11113859 | Lower Gearcase (milkshake/matte Milkshake) |
|
- | |||||
| 5J | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 5K | 24035056 | Lower Gearcase (onyx Black) |
|
- | |||||
| 5L | W11298417 | Lower Gearcase (passion/signature Red) |
|
- | |||||
| 5M | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 5N | W11647806 | Lower Gearcase (porcelain) |
|
- | |||||
| 5O | W10349276 | Lower Gearcase (silver/silver Tread) |
|
- | |||||
| 5P | 2403504 | Lower Gearcase (white) |
|
- | |||||
| 6A | W11170300 | Pedestal (black Matte) (Replaces: W10885695) |
|
- | |||||
| 6B | W11231604 | Pedestal (blue Velvet) |
|
- | |||||
| 6C | 9707100 | Pedestal (cast Iron/imperial Black) |
|
- | |||||
| 6D | W10350457 | Pedestal (contour Silver) |
|
- | |||||
| 6E | W11131262 | Pedestal (empire Red) (Replaces: 9702304) |
|
$ 97.71 | |||||
| 6F | W11684968 | Pedestal (juniper) |
|
- | |||||
| 6G | W11231606 | Pedestal (matte Dried Rose) |
|
- | |||||
| 6H | 9706684 | Pedestal (metallic Chrome) |
|
- | |||||
| 6I | W11113853 | Pedestal (milkshake/matte Milkshake) |
|
- | |||||
| 6J | W11444670 | Pedestal (mineral Water Blue) |
|
- | |||||
| 6K | 3179275 | Pedestal (onyx Black) |
|
- | |||||
| 6L | W11298419 | Pedestal (passion/signature Red) |
|
- | |||||
| 6M | 9706830 | Pedestal (pistachio) |
|
- | |||||
| 6N | W11647809 | Pedestal (porcelain) |
|
- | |||||
| 6O | W10348330 | Pedestal (silver/silver Tread) |
|
- | |||||
| 6P | 3179260 | Pedestal (white) |
|
- |
