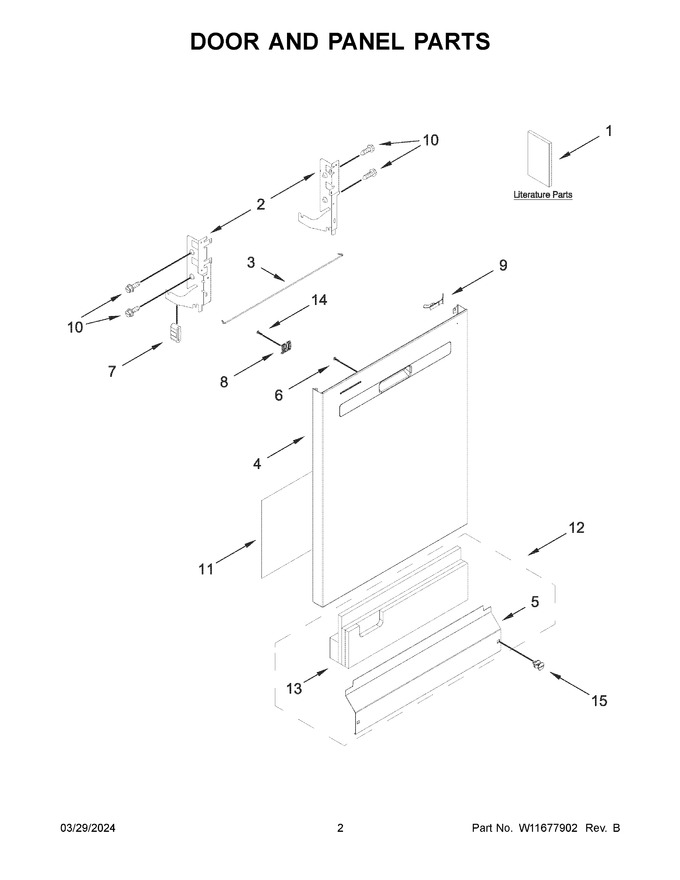

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11612298		Energy Guide		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: W11484017)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W11613483		Panel, Front (includes 8 & 9) (stainless)   (Replaces: W11528192)			Immediately	$ 435.04
5	W11763736		Access Panel (includes Hardware) (black)   (Replaces: W10441006)			Immediately	$ 42.25
6	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
7	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
8	W10692757		Barrel Nut, Front Panel				$ 16.01
9	W11504190		Light, Pipe		Appelez-nous	-
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
12	W10827631		Access Panel & Insulation Assy (black)   (Replaces: W10369023)			Immediately	$ 195.64
13	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
14	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 7.55
15	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
1A	W11532445		Owners Manual		Appelez-nous	-
1B	W11532444		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: W11484018)			Immediately	$ 142.24
