01 - Cover Sheet

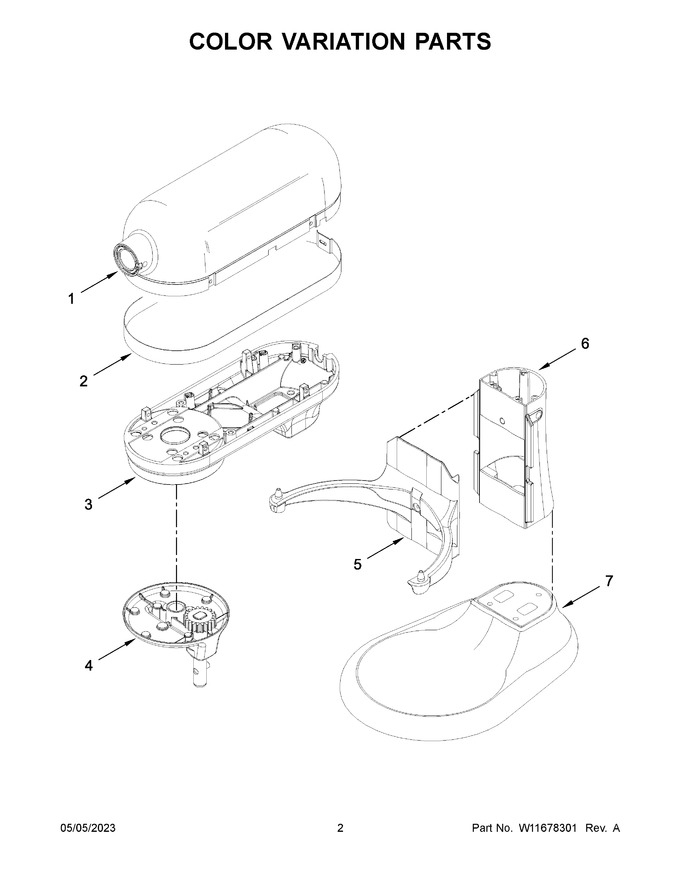

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11681929 | Motor Housing (almond Cream/creme) (Replaces: 9705298) |
|
- | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11527636 | Lower Gearcase (almond Cream/creme) |
|
- | |||||
| 4 | W11527670 | Planetary (almond Creme) |
|
- | |||||
| 5 | 9705358 | Bowl Support And Pins (almond Cream/creme) |
|
- | |||||
| 6 | 9705322 | Column And Pins (almond Cream/creme) |
|
- | |||||
| 7 | W11672227 | Base And Foot Assembly (almond Cream/creme) (Replaces: 9705346) |
|
- | |||||
| 1A | W11123176 | Motor Housing (black Matte) |
|
- | |||||
| 1B | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1C | 9708090 | Motor Housing (pistachio) |
|
- | |||||
| 3A | W11520136 | Lower Gearcase (black Matte) |
|
- | |||||
| 3B | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 3C | W11520137 | Lower Gearcase (pistachio) |
|
$ 63.69 | |||||
| 4A | W11513622 | Planetary (black Matte) |
|
- | |||||
| 4B | W11513270 | Planetary (empire Red) |
|
$ 77.95 | |||||
| 4C | W11513621 | Planetary (pistachio) |
|
- | |||||
| 5A | W11328664 | Bowl Support And Pins (black Matte) |
|
- | |||||
| 5B | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5C | W11417635 | Bowl Support And Pins (pistachio) |
|
- | |||||
| 6A | W11123140 | Column And Pins (black Matte) |
|
- | |||||
| 6B | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6C | 9708104 | Column And Pins (pistachio) |
|
- | |||||
| 7A | W11123131 | Base And Foot Assembly (black Matte) |
|
- | |||||
| 7B | 9705348 | Base And Foot Assembly (empire Red) |
|
- | |||||
| 7C | 9708107 | Base And Foot Assembly (pistachio) |
|
- |
