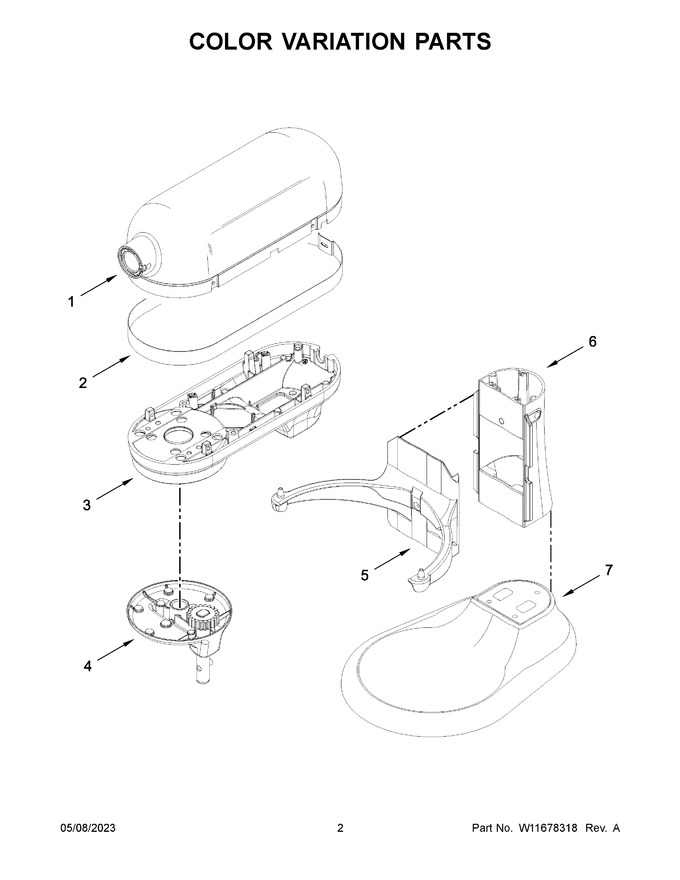

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 2 | W11420348 | Trim Band (light Brushed Aluminum) |
|
- | |||||
| 3 | W11520143 | Lower Gearcase (contour Silver) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 85.73 | |||||
| 5 | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 6 | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 7 | W10328017 | Base And Foot Assembly (contour Silver) |
|
- | |||||
| 1A | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1B | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1C | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 3A | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 3B | W11421149 | Lower Gearcase (onyx Black) |
|
- | |||||
| 3C | W11520144 | Lower Gearcase (white) |
|
- | |||||
| 5A | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5B | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5C | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6A | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6B | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6C | 9703673 | Column And Pins (white) |
|
$ 81.26 | |||||
| 7A | 9705348 | Base And Foot Assembly (empire Red) |
|
- | |||||
| 7B | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7C | 9703690 | Base & Foot Assembly (white) |
|
- |
